DTC C0032: Left Front Wheel Speed Sensor Circuit Open or Shorted: Notes

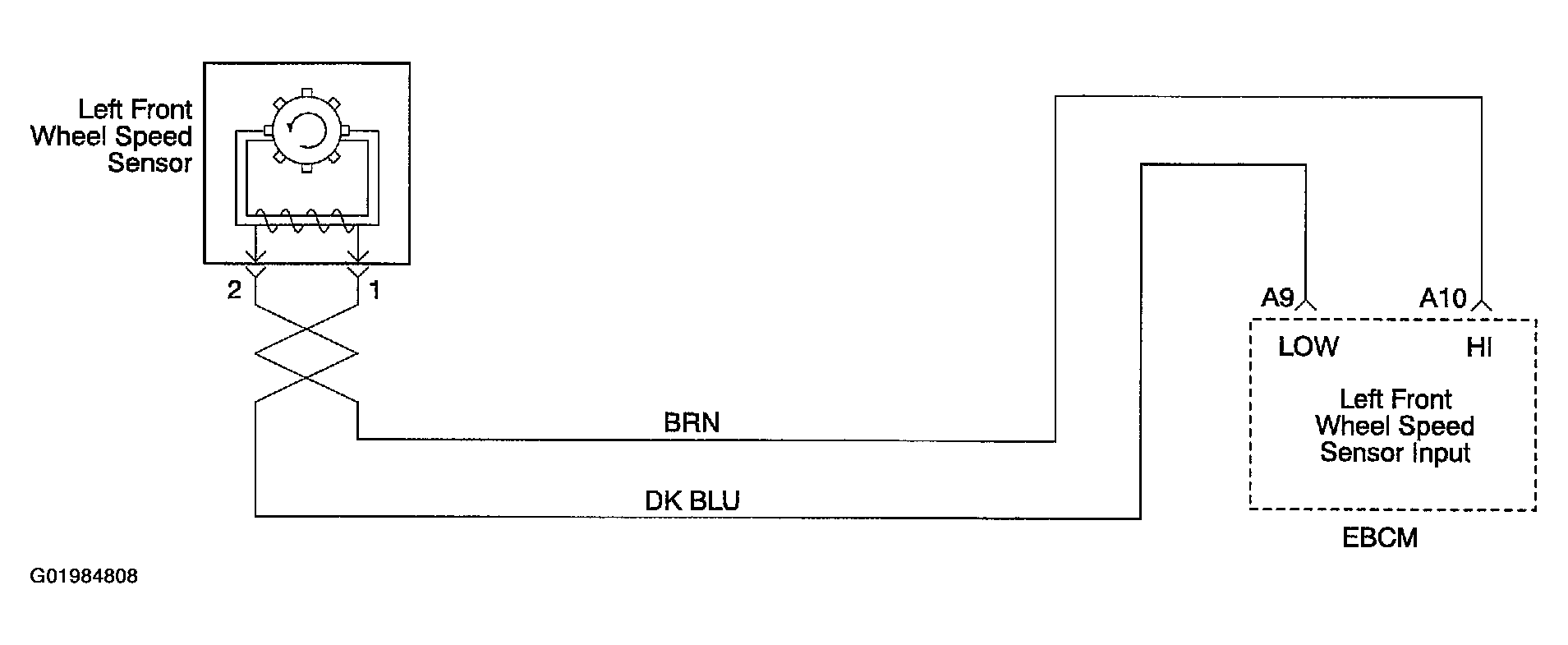

Fig 1: DTC C0032: Left Front Wheel Speed Sensor Circuit Open Or Shorted - Wiring Diagram

G01984808

Courtesy of SUZUKI OF AMERICA CORP.
