Outside Mirror Schematics

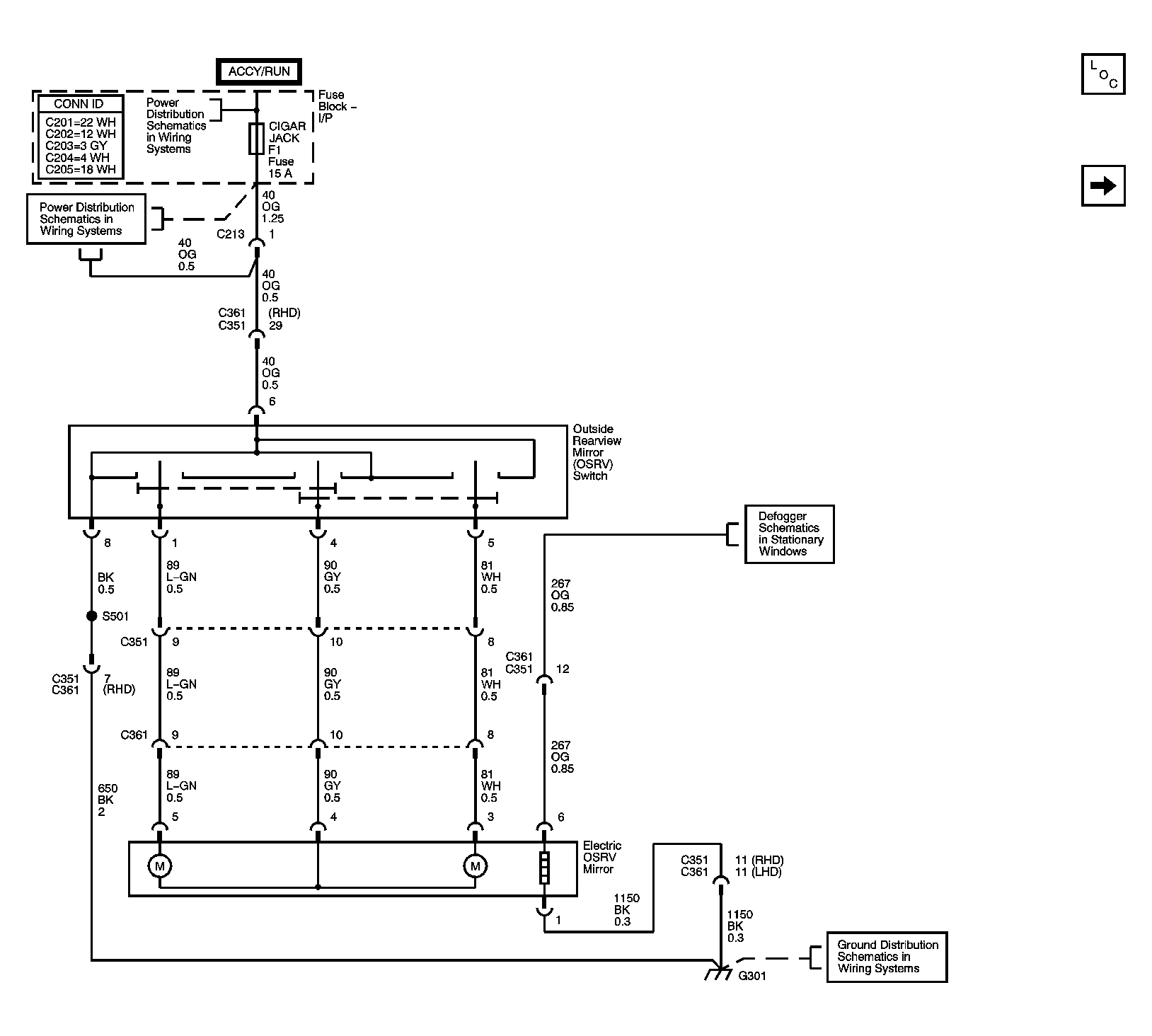

Fig 1: Power Mirrors - Passenger Only DBK Schematics

GM1257922

Courtesy of GENERAL MOTORS CORP.

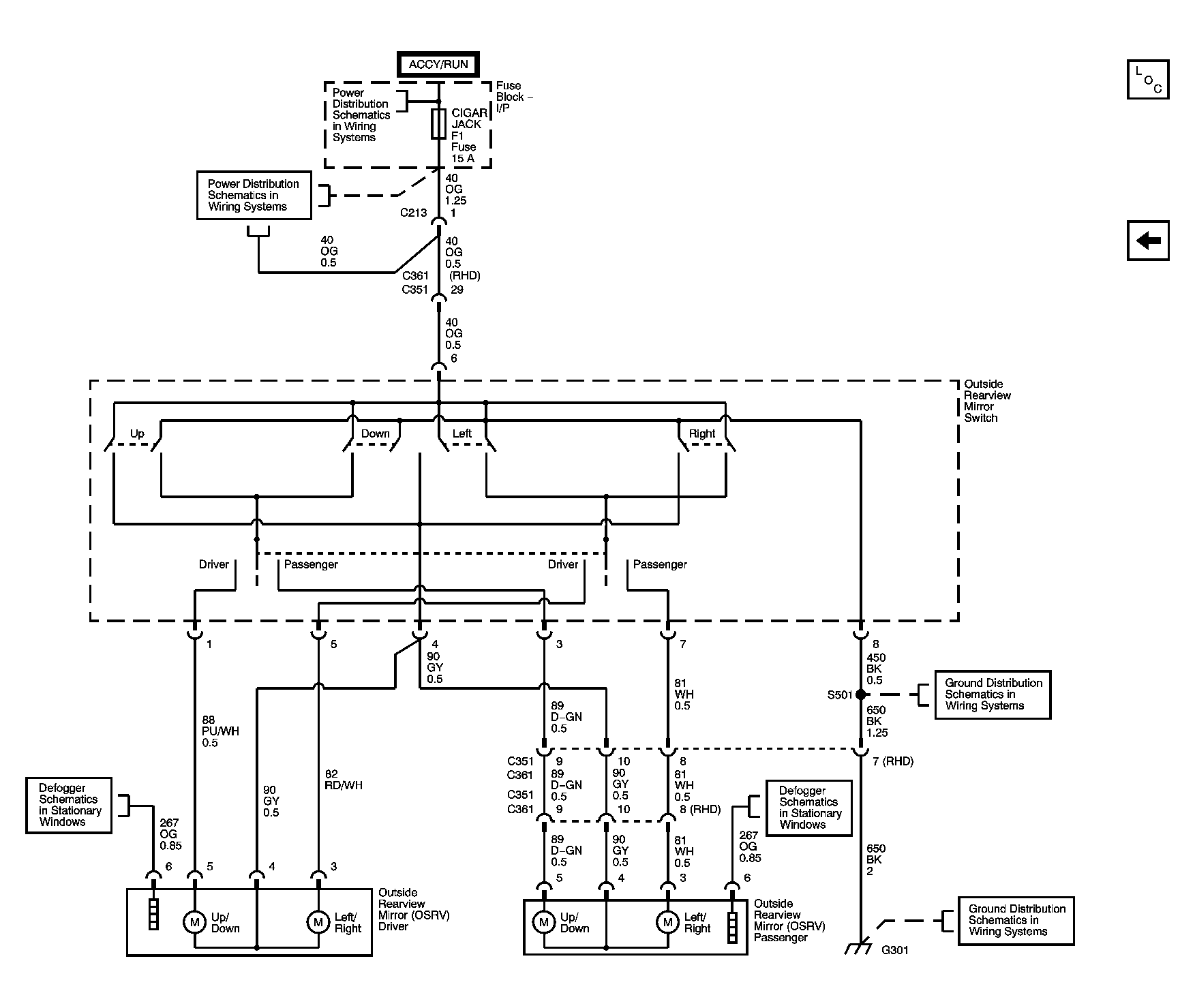

Fig 2: Power Mirrors - Dual Schematics

GM1376493

Courtesy of GENERAL MOTORS CORP.
