Home >> Suzuki >> 2004 >> Forenza EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information & Diagnosis >> Diagnostic Information and Procedures >> On-Board Diagnostic (OBD II) System Check >> Notes

On-Board Diagnostic (OBD II) System Check: Notes

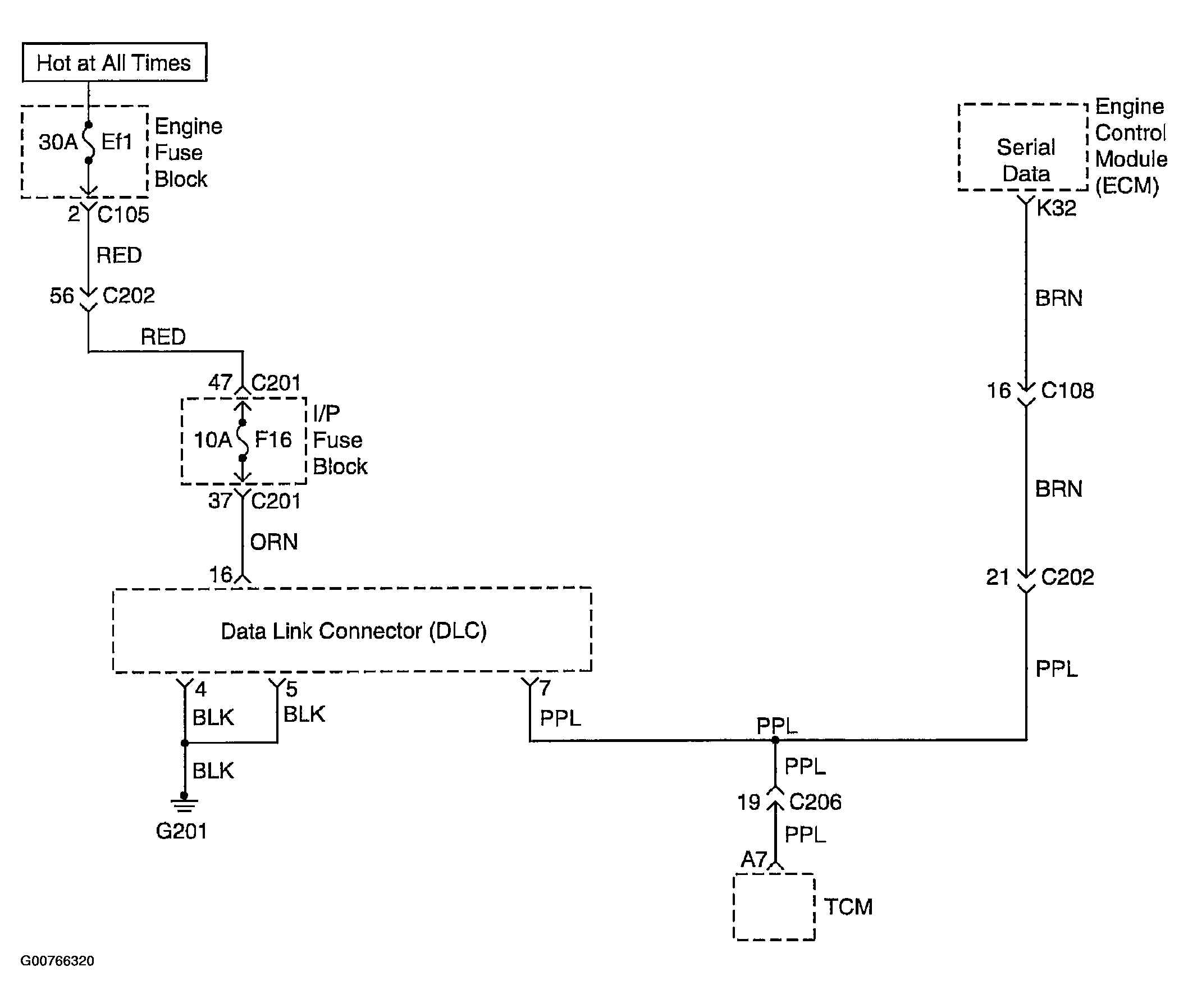

Fig 1: On-Board Diagnostic (OBD II) System Check - Wiring Diagram

G00766320

Courtesy of SUZUKI OF AMERICA CORP.
