Defogger System Circuit Wiring Diagram

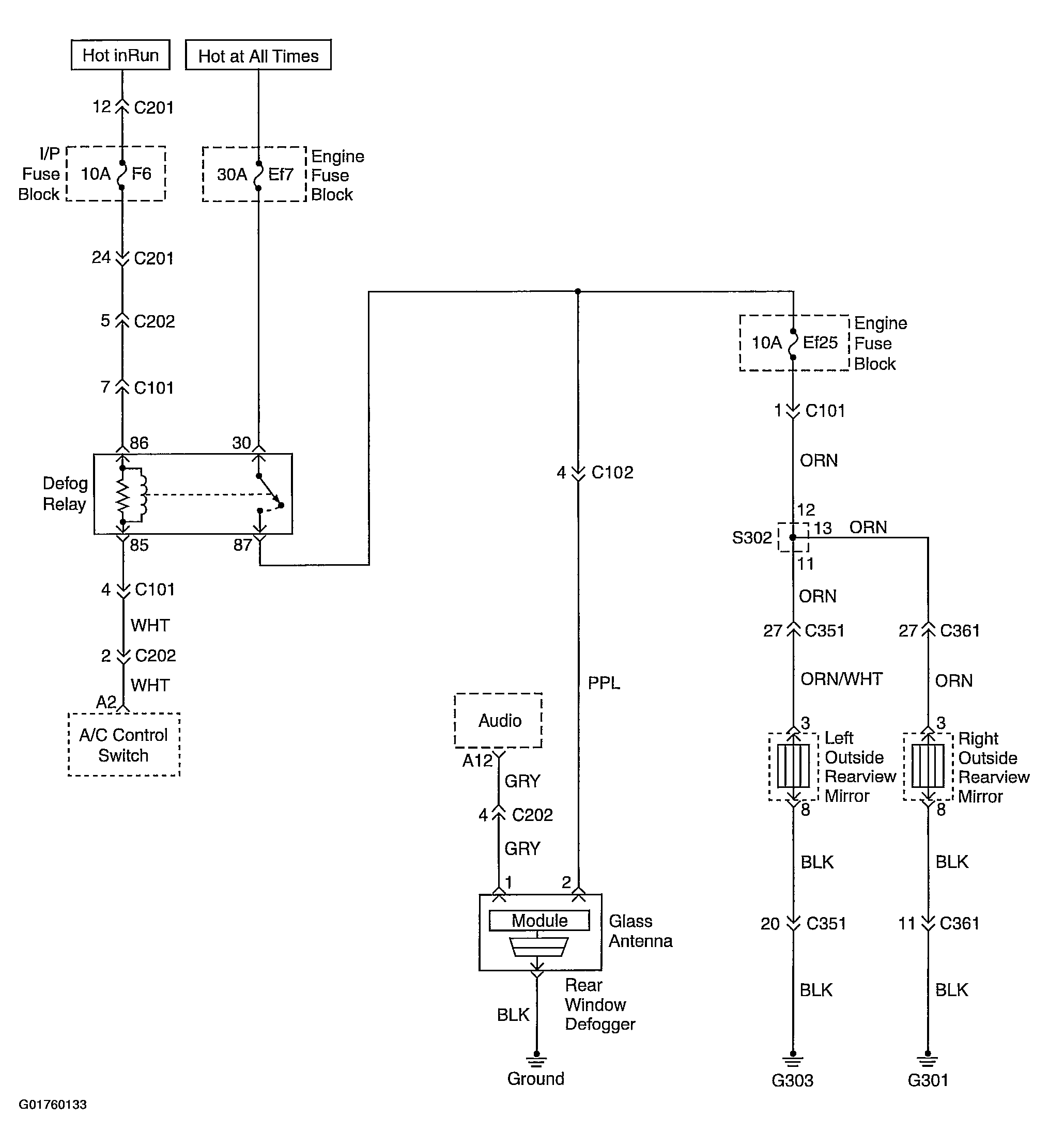

Fig 1: Identifying Defogger System Circuit Wiring Diagram

G01760133

Courtesy of SUZUKI OF AMERICA CORP.
