Ignition System Wiring Circuit Diagram

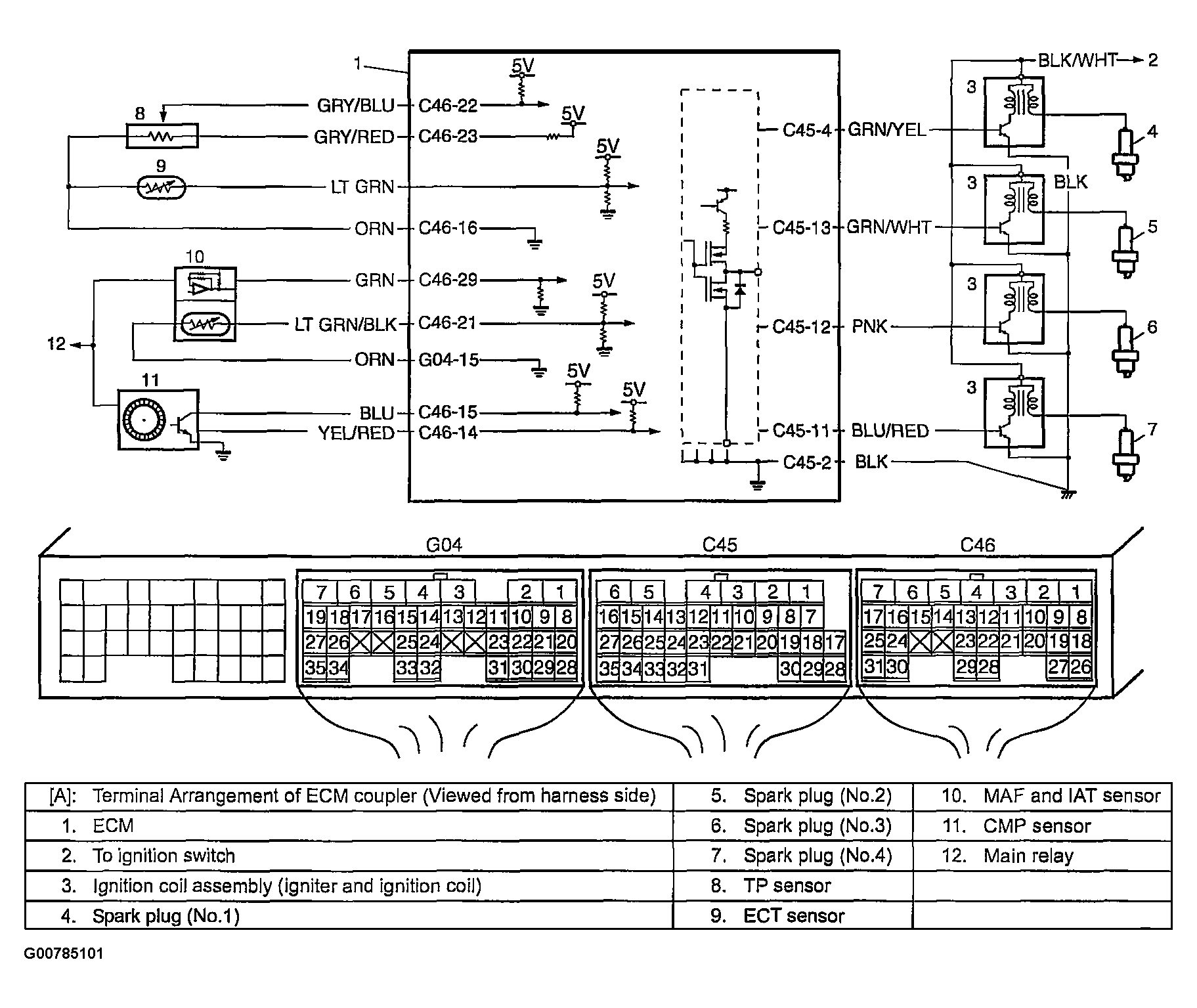

Fig 1: Ignition System Wiring Circuit Diagram

G00785101

Courtesy of SUZUKI OF AMERICA CORP.
