Visual Inspection

Visually check the following parts and systems.

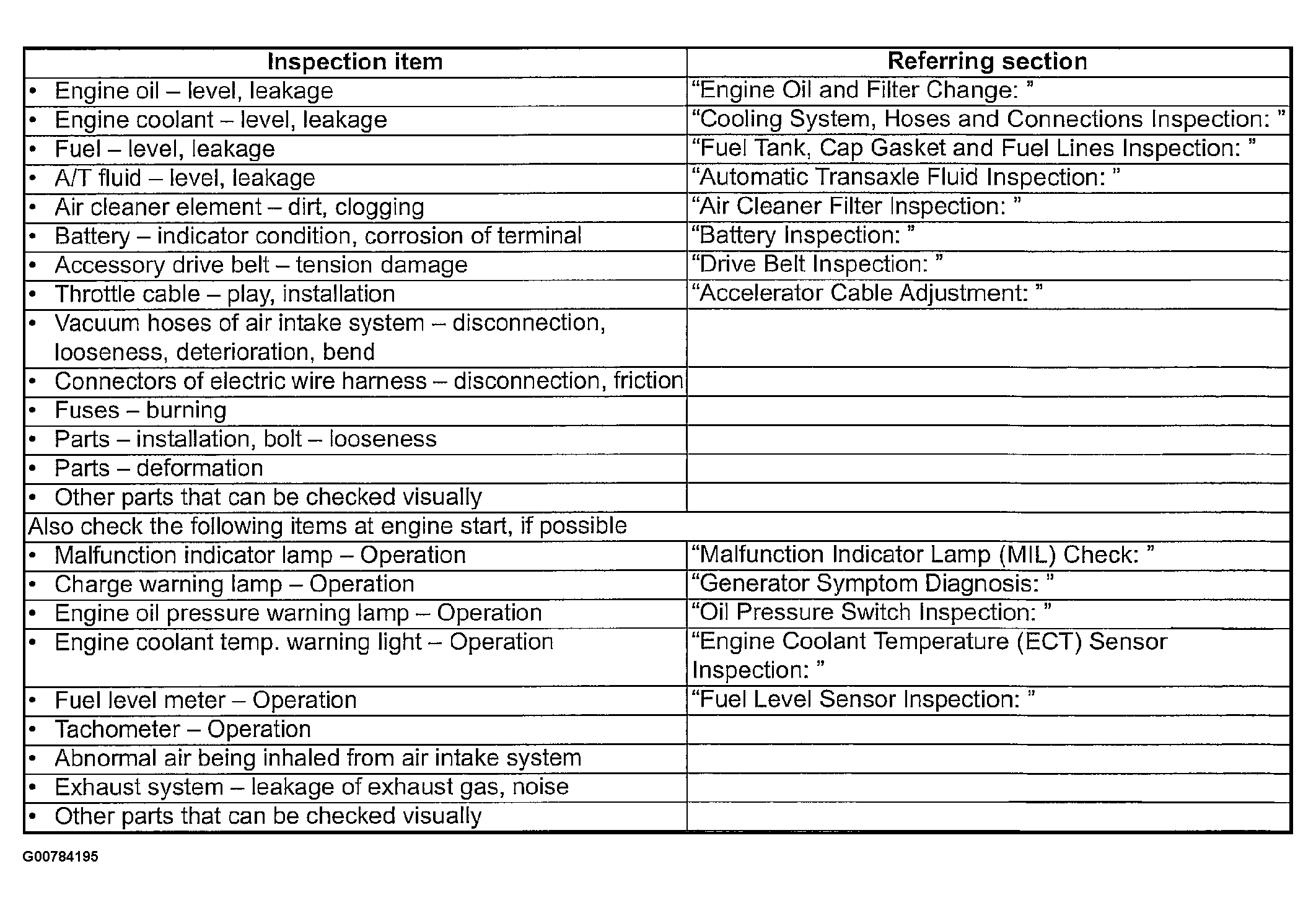

Fig 1: Identifying Visual Inspection

G00784195

Courtesy of SUZUKI OF AMERICA CORP.
