DTC C1071 (No. 71): ABS Control Module: Notes

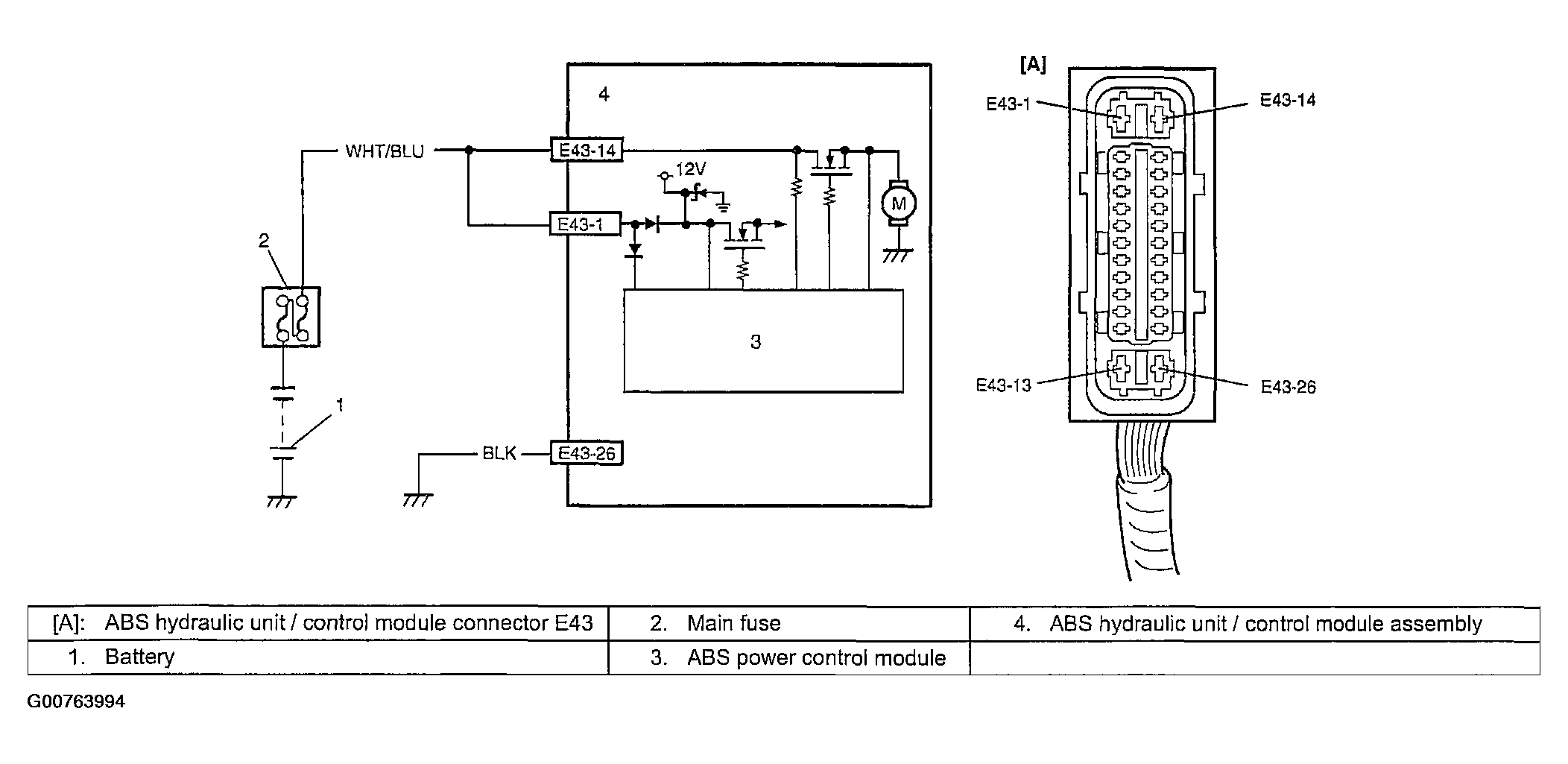

Fig 1: DTC C1071 (No.71): ABS Control Module - System Wiring Diagram

G00763994

Courtesy of SUZUKI OF AMERICA CORP.
