Power Window Sub Switch Inspection

Inspect switch continuity between terminal.

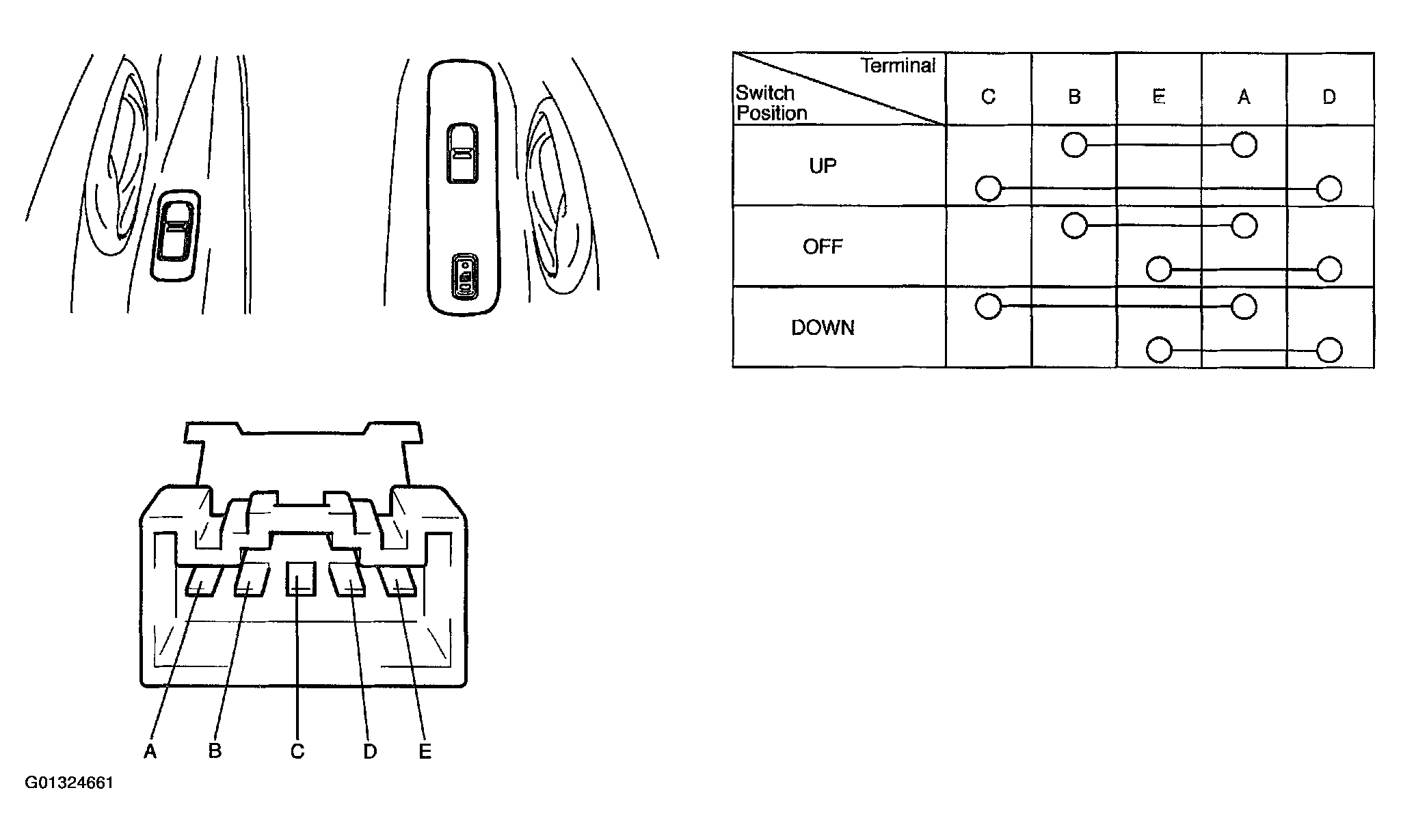

Fig 1: Checking Power Window Sub Switch

G01324661

Courtesy of SUZUKI OF AMERICA CORP.
