Power Window Main Switch Inspection

Inspect switch continuity between terminals.

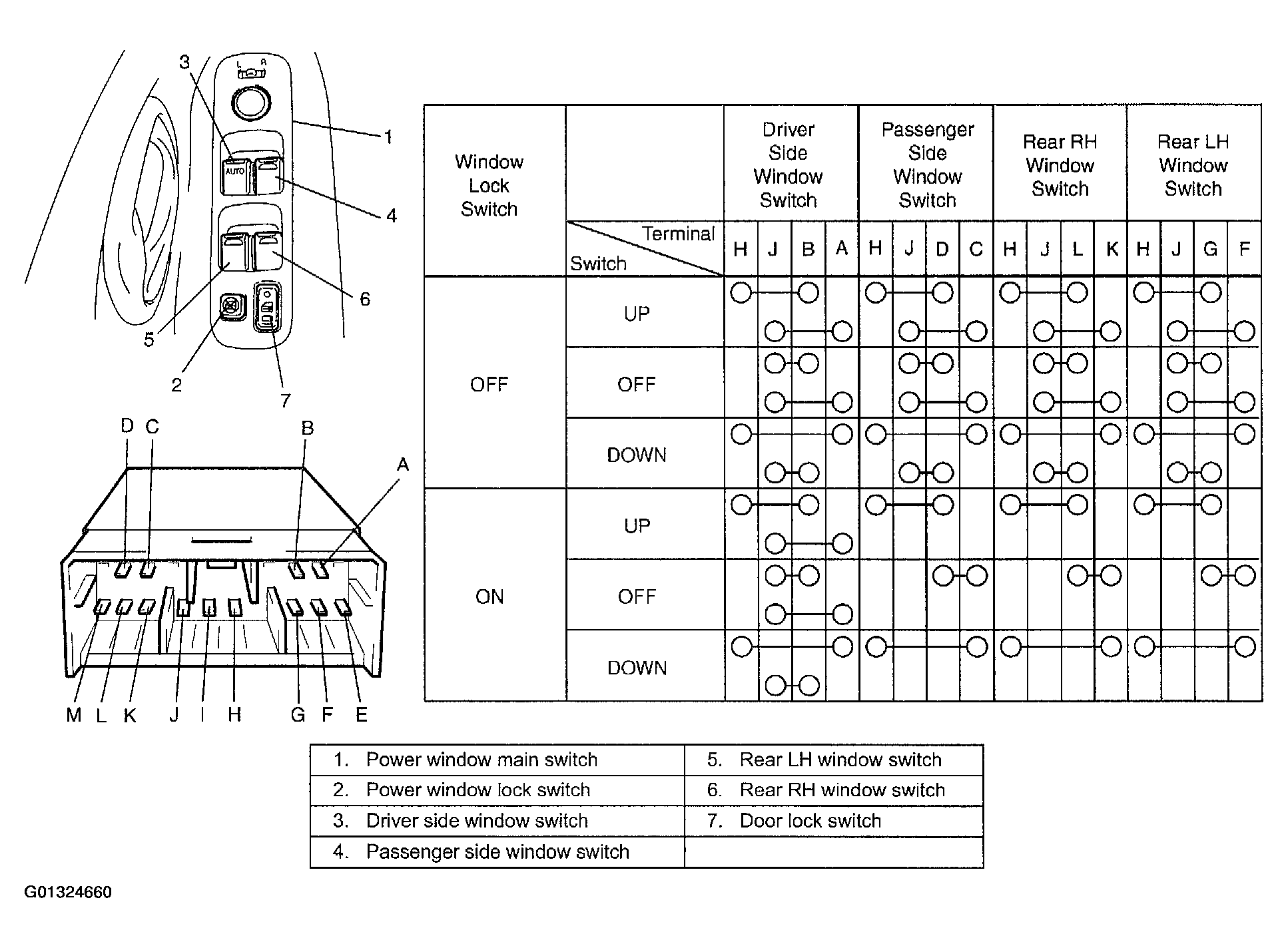

Fig 1: Checking Power Window Main Switch

G01324660

Courtesy of SUZUKI OF AMERICA CORP.
