Specifications
>>
Tightening Torque Specifications
Tightening Torque Specifications

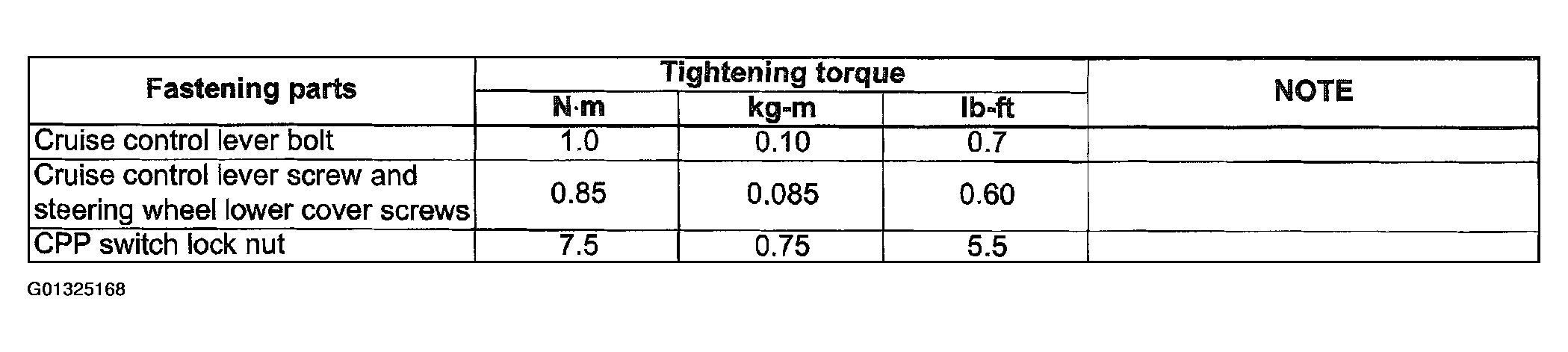

Fig 1: Tightening Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
