Ignition System Symptom Diagnosis

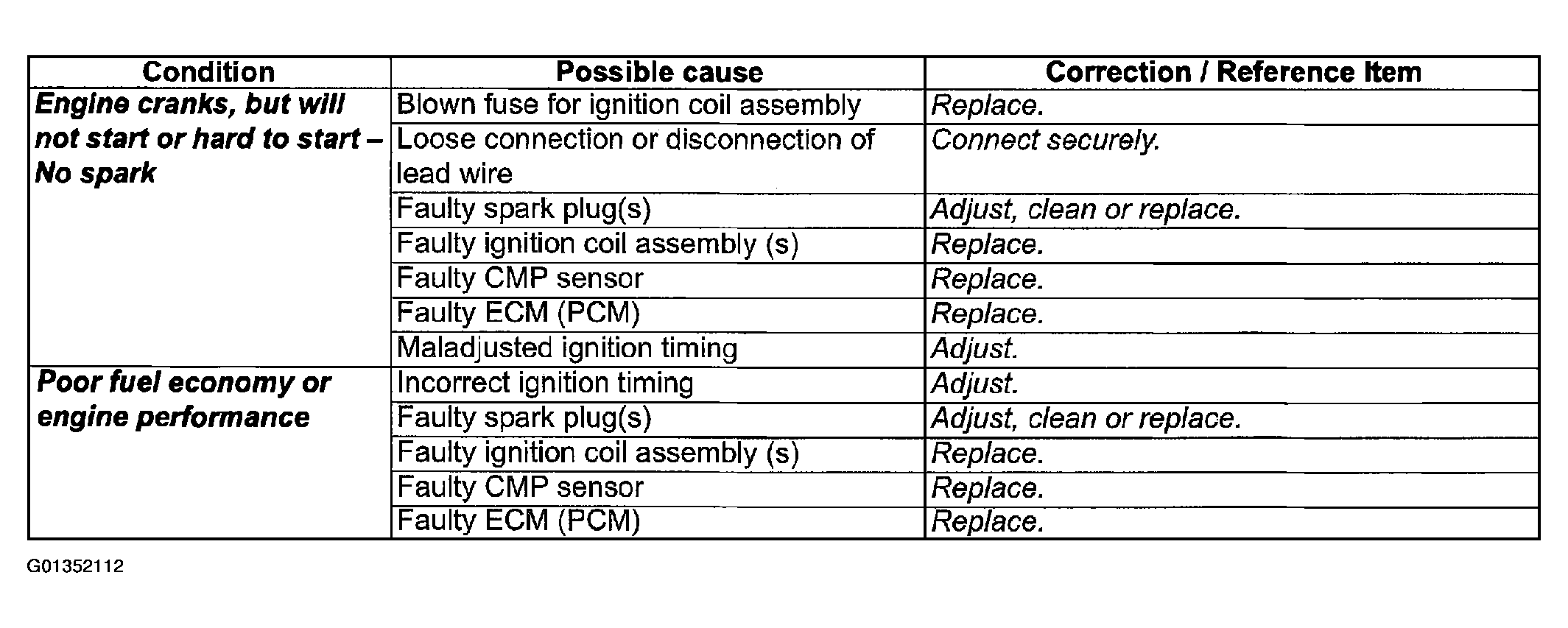

Fig 1: Ignition System Symptom Diagnosis Chart

G01352112

Courtesy of SUZUKI OF AMERICA CORP.
