Cruise Control Module Power And Ground Circuits Check

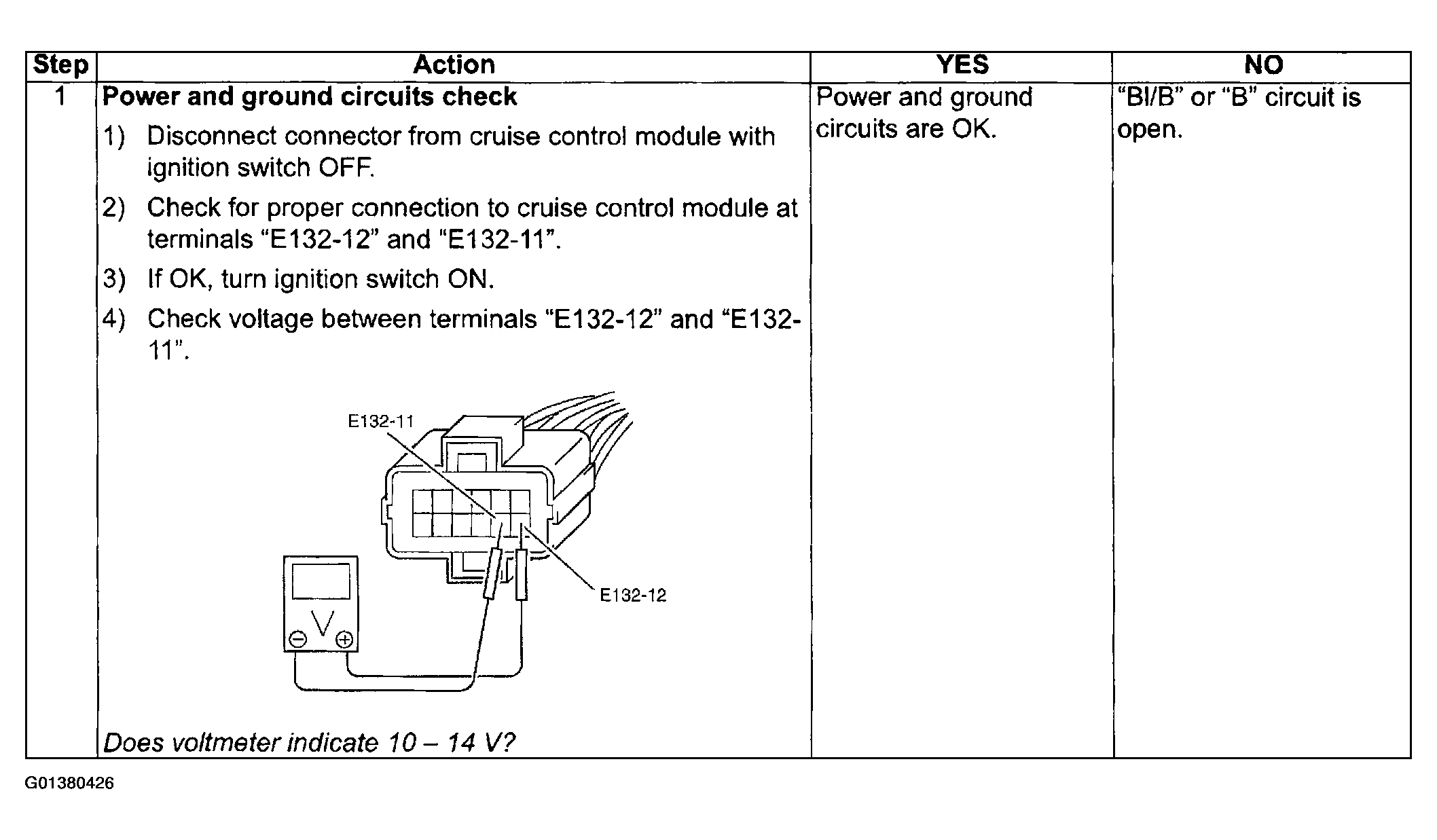

Fig 1: Cruise Control Module Power & Ground Circuits Check Chart

G01380426

Courtesy of SUZUKI OF AMERICA CORP.
