Anti-Lock Brake System Circuit Diagram: Notes

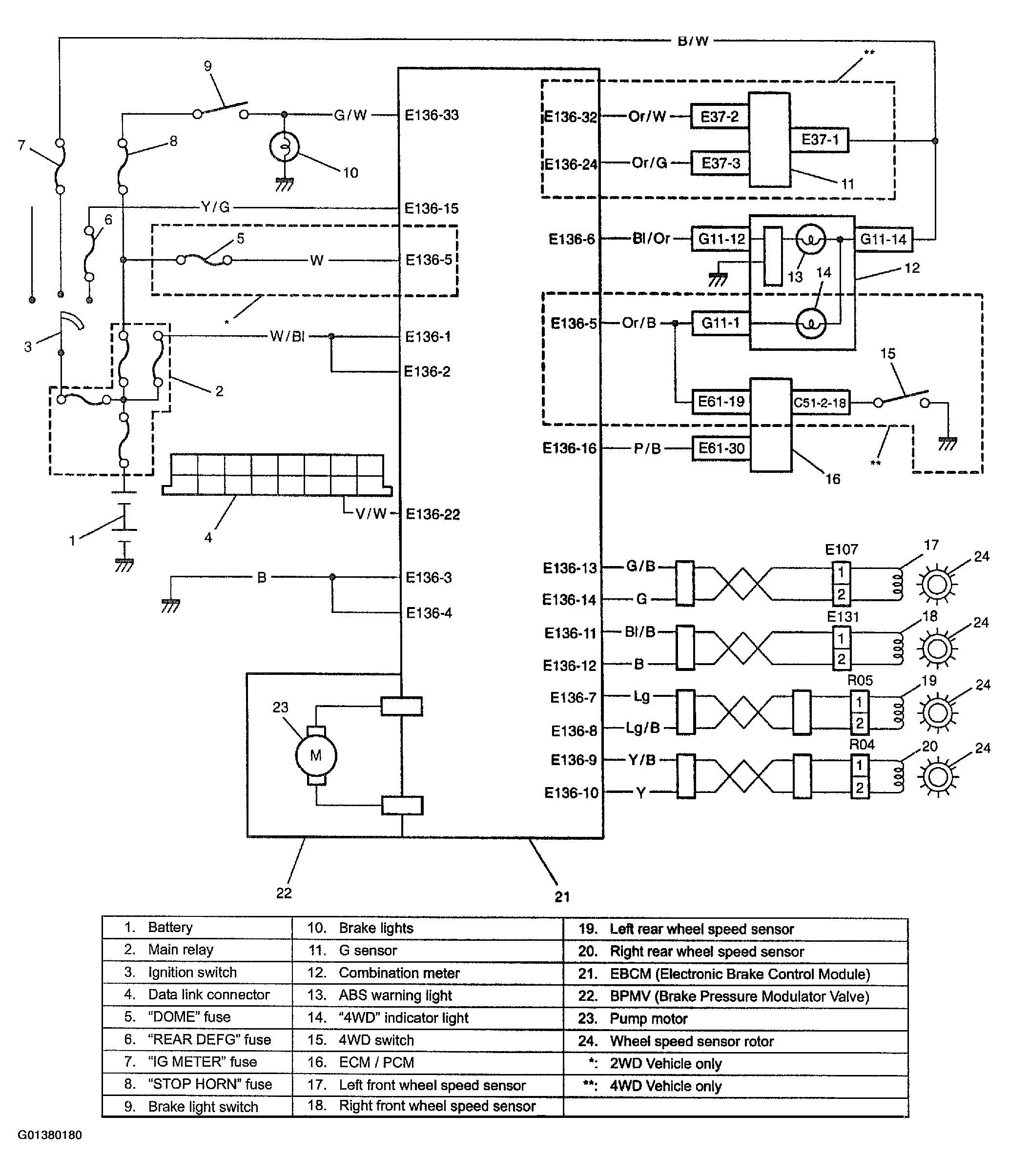

Fig 1: Anti-lock Brake System Schematic Diagram

G01380180

Courtesy of SUZUKI OF AMERICA CORP.
