Transmission Range Sensor: Inspection

  1. Disconnect transmission range sensor connector.

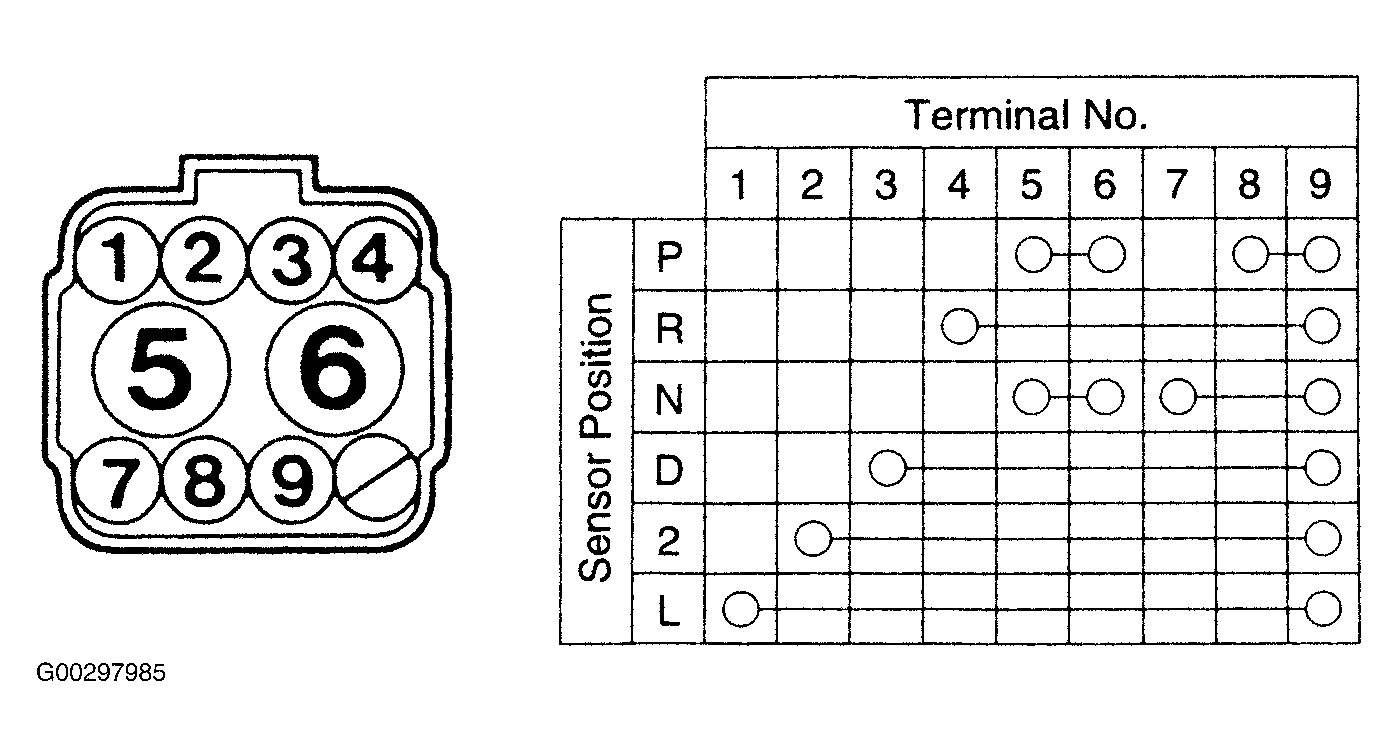

  2. Check that continuity exists at terminals showing in the following figure by moving selector lever. See Figure .
