Shift Lock Solenoid Manual Release

Without using brake pedal, shift lock plate be moved by pushing shift lock solenoid plate (1) with screw driver or like through hole (2). (To shift select lever from "P" range to any other position, turn ignition switch to ACC or ON position.)

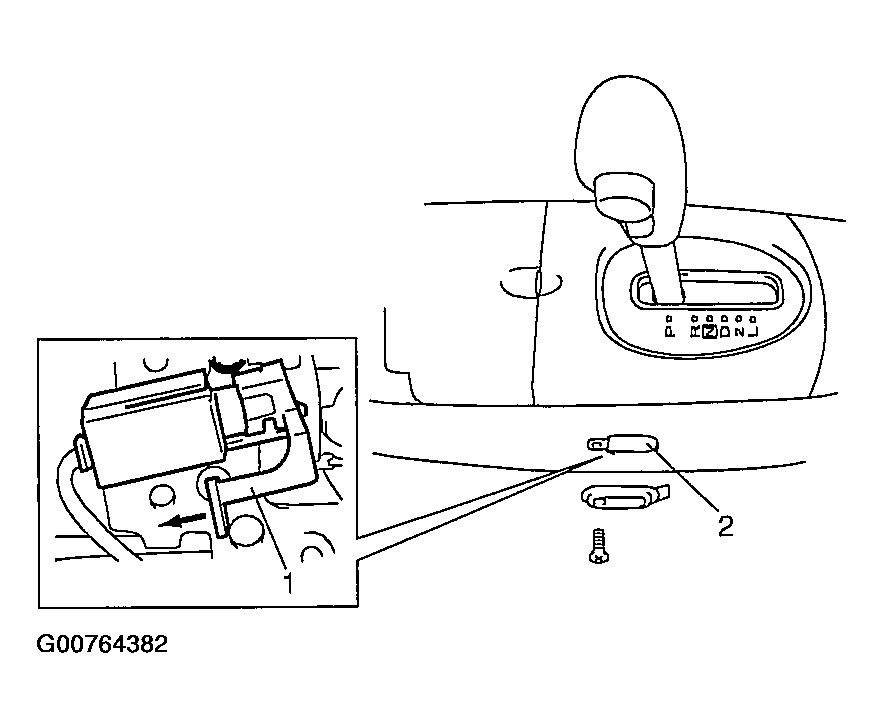

Fig 1: Shift Lock Solenoid Manual Release
G00764382Courtesy of SUZUKI OF AMERICA CORP.
