Home >> Suzuki >> 2003 >> Aerio SX, AWD >> Repair and Diagnosis >> Body & Frame >> Power Door Locks & Remote Keyless Entry >> Repair Instructions >> Front Door Lock Assembly Components

Front Door Lock Assembly Components

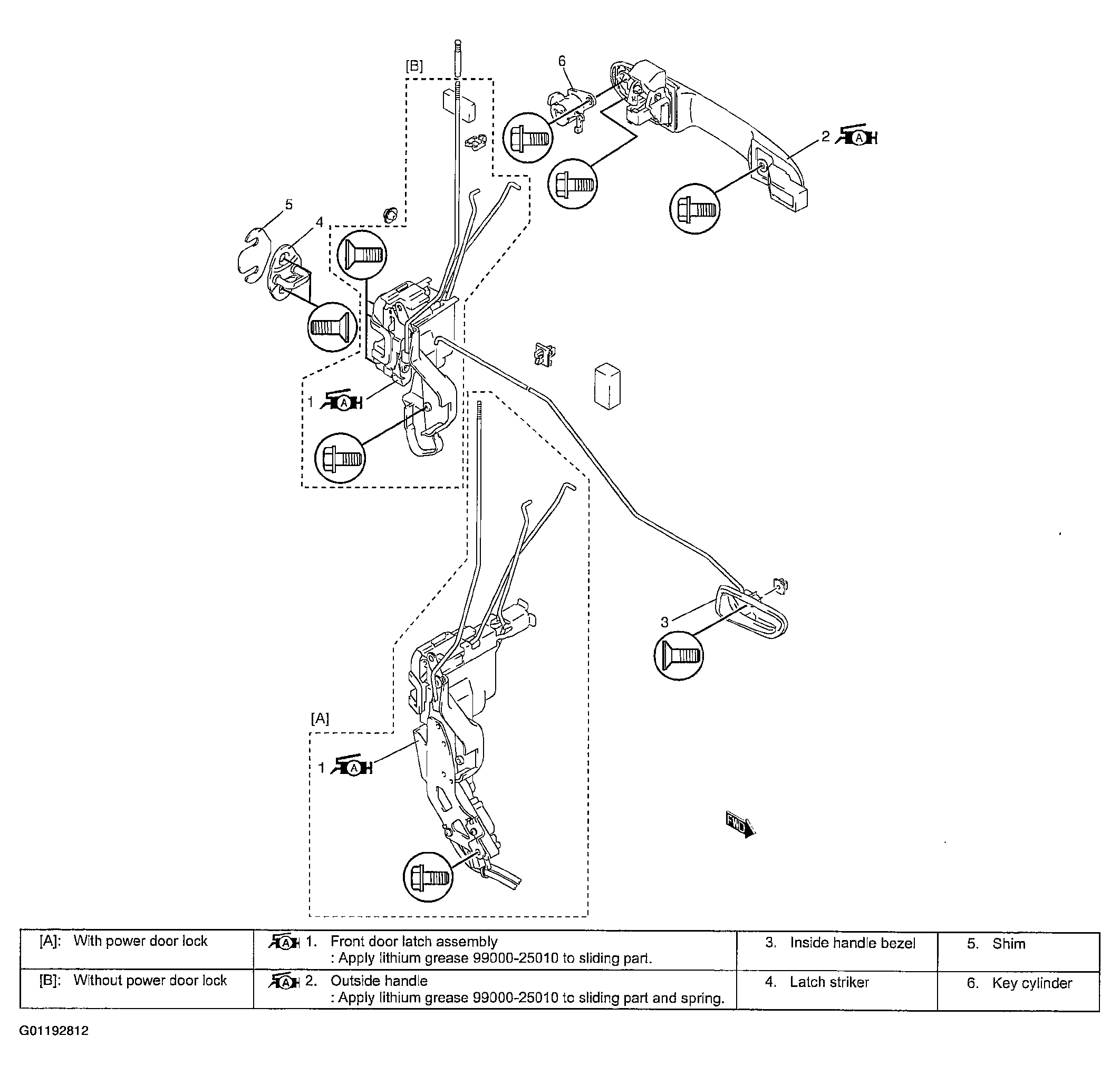

Fig 1: Exploded View Of Front Door Lock Assembly Components

G01192812

Courtesy of SUZUKI OF AMERICA CORP.
