Accessories & Equipment
>>
Cruise Control Systems
>>
General Description
>>
Components and Functions of Cruise Control System
Components and Functions of Cruise Control System

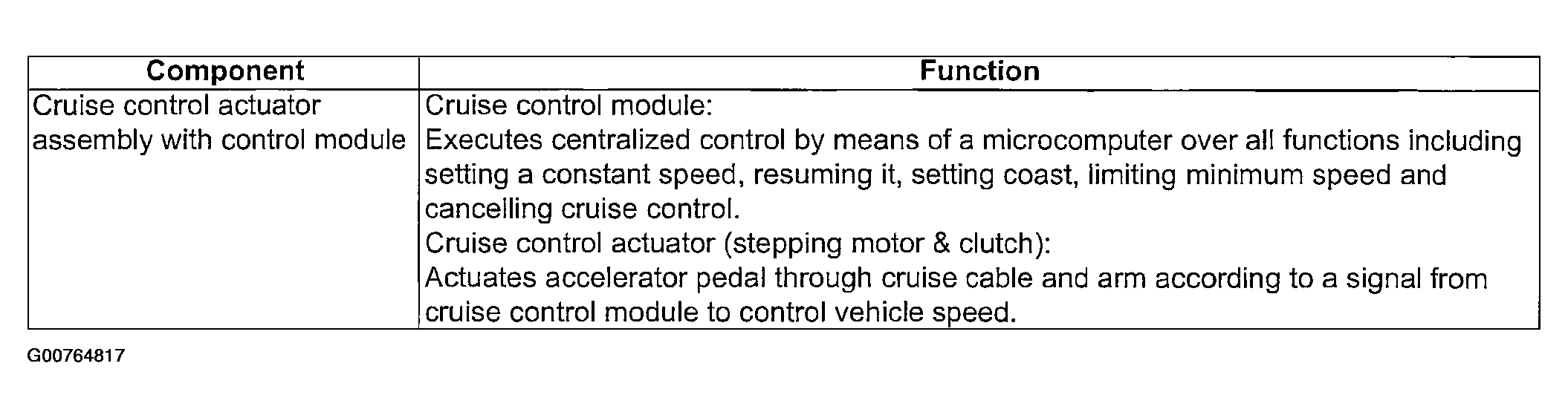

Fig 1: Cruise Control System Components and Functions Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

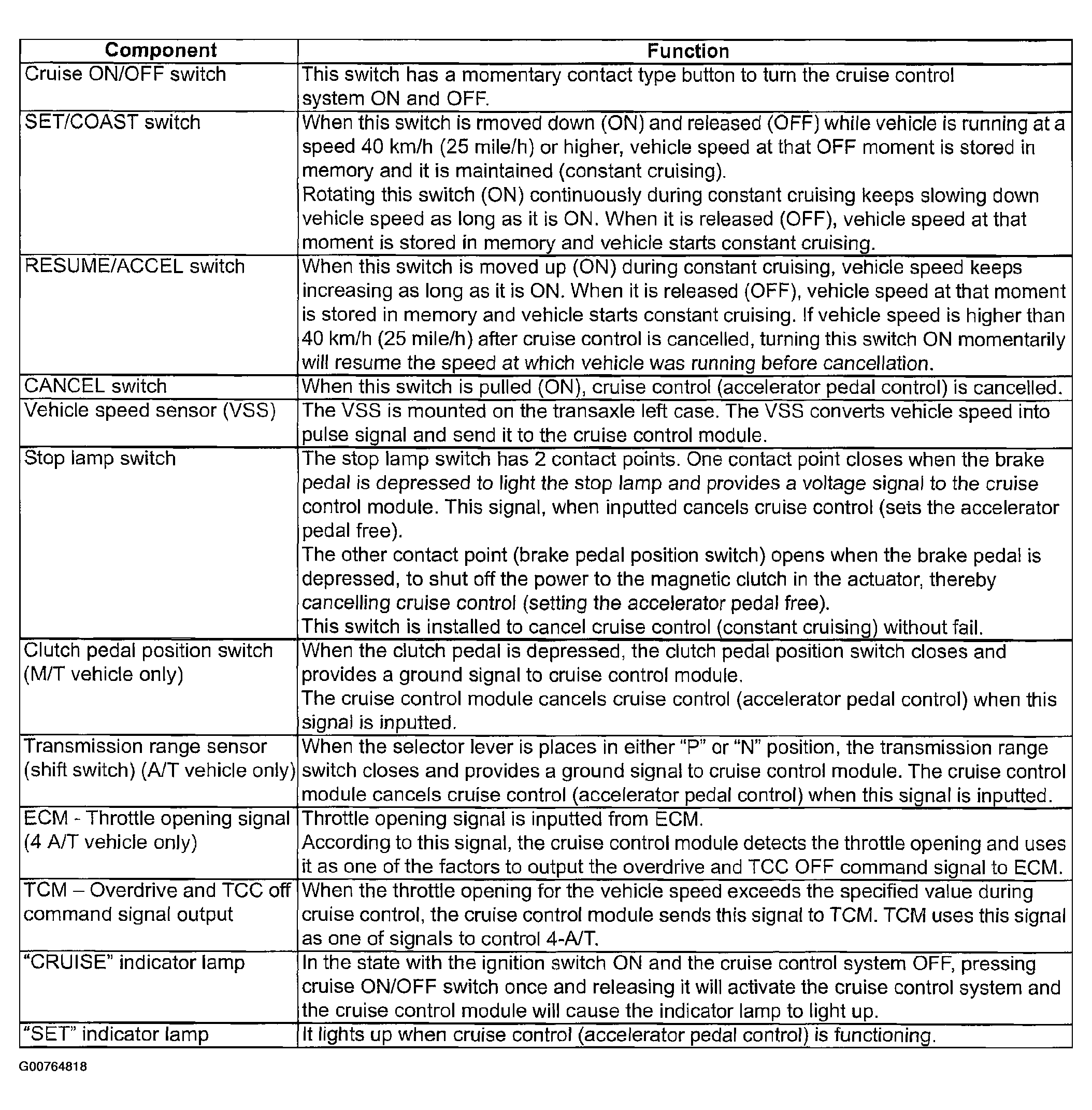

Fig 2: Cruise Control System Components and Functions Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
