Door Lock Key Cylinder Switch Test

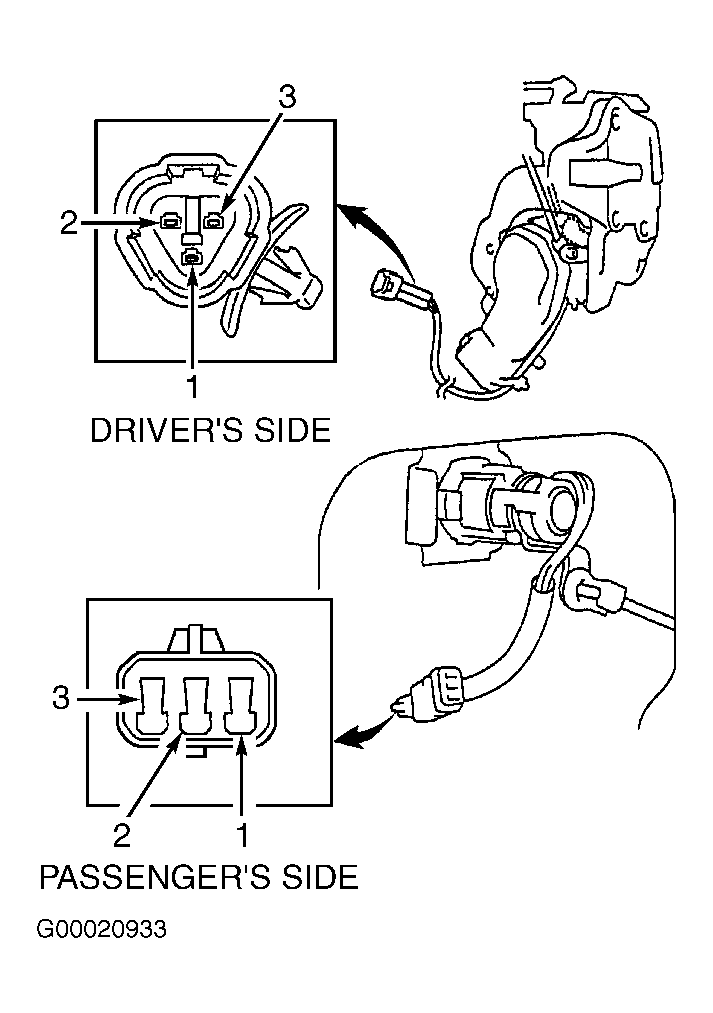

Using an ohmmeter, check continuity between appropriate switch terminals. See DOOR KEY SWITCH CONTINUITY TEST table. See Fig 1 . If power door lock switch fails any test, replace door lock key cylinder switch.
DOOR KEY SWITCH CONTINUITY TEST (VITARA & GRAND VITARA)
| Switch Position | Continuity Between Terminals No. | ||
|---|---|---|---|
| Lock | 2 & 3 | ||
| Off | (1) | ||
| Unlock | 1 & 2 | ||
|
|||
