Home >> Suzuki >> 1995 >> Swift Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Circuit Tests >> Diagnostic Circuit Check

Diagnostic Circuit Check

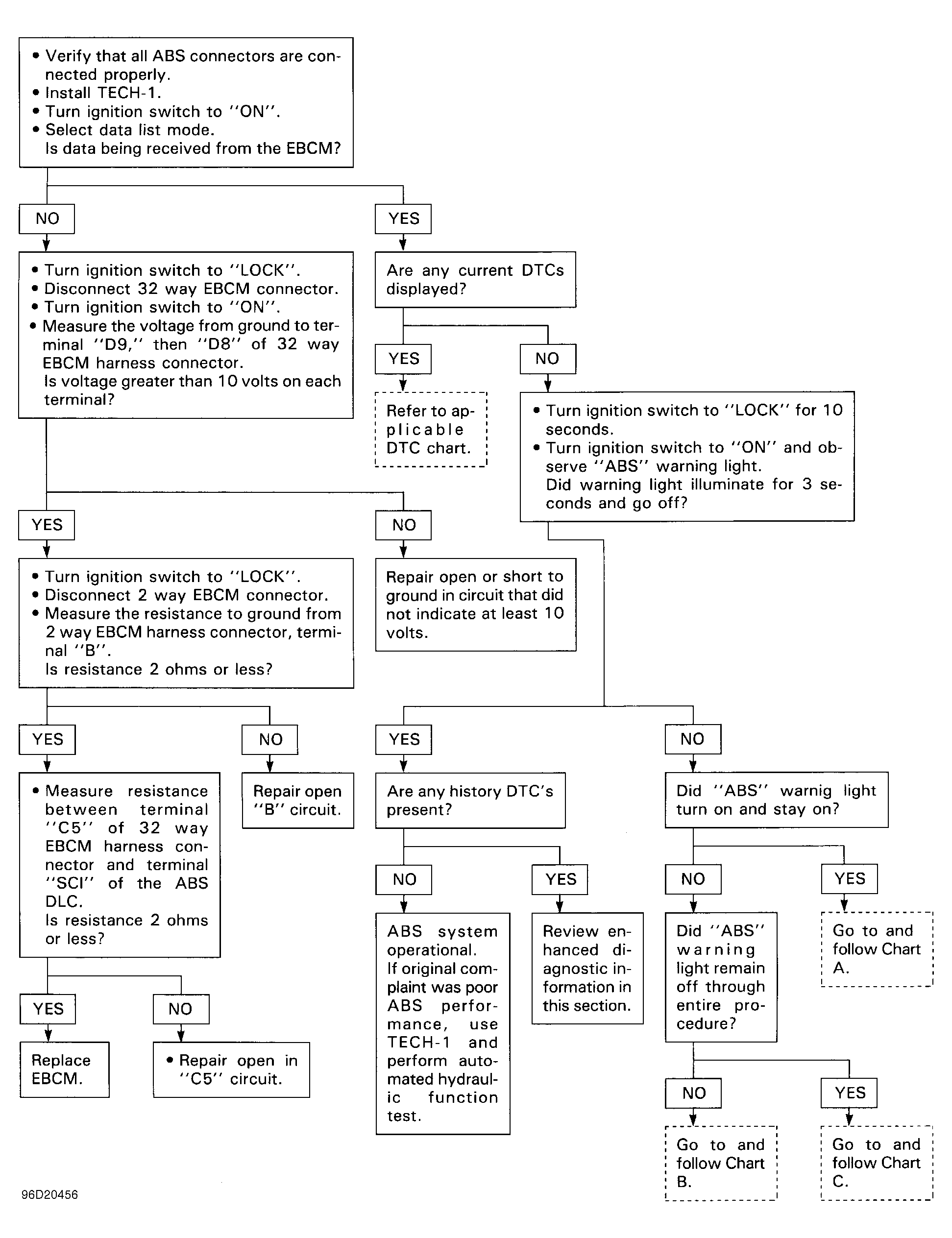

Fig 1: DIAGNOSTIC CIRCUIT CHECK

G96D20456
