Home >> Suzuki >> 1995 >> Sidekick JS, 2D Utility, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests - MFI >> Circuit Resistance Charts

Circuit Resistance Charts

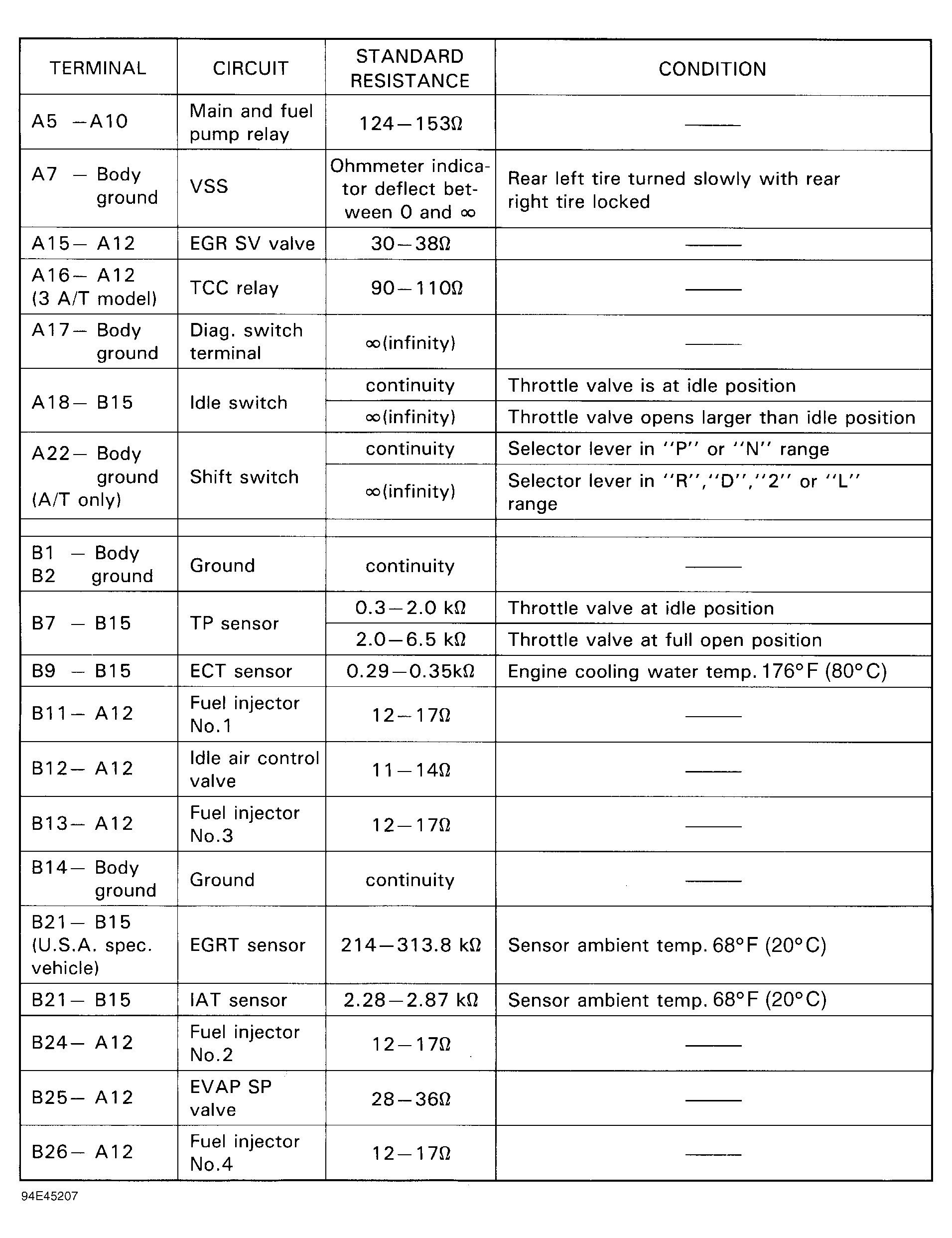

Fig 1: Circuit Resistance Chart

G94E45207

Courtesy of SUZUKI OF AMERICA CORP.
