Chart A-2 - Mil "Check Engine" Circuit Check Mil "Check Engine" Inoperative, Engine Starts

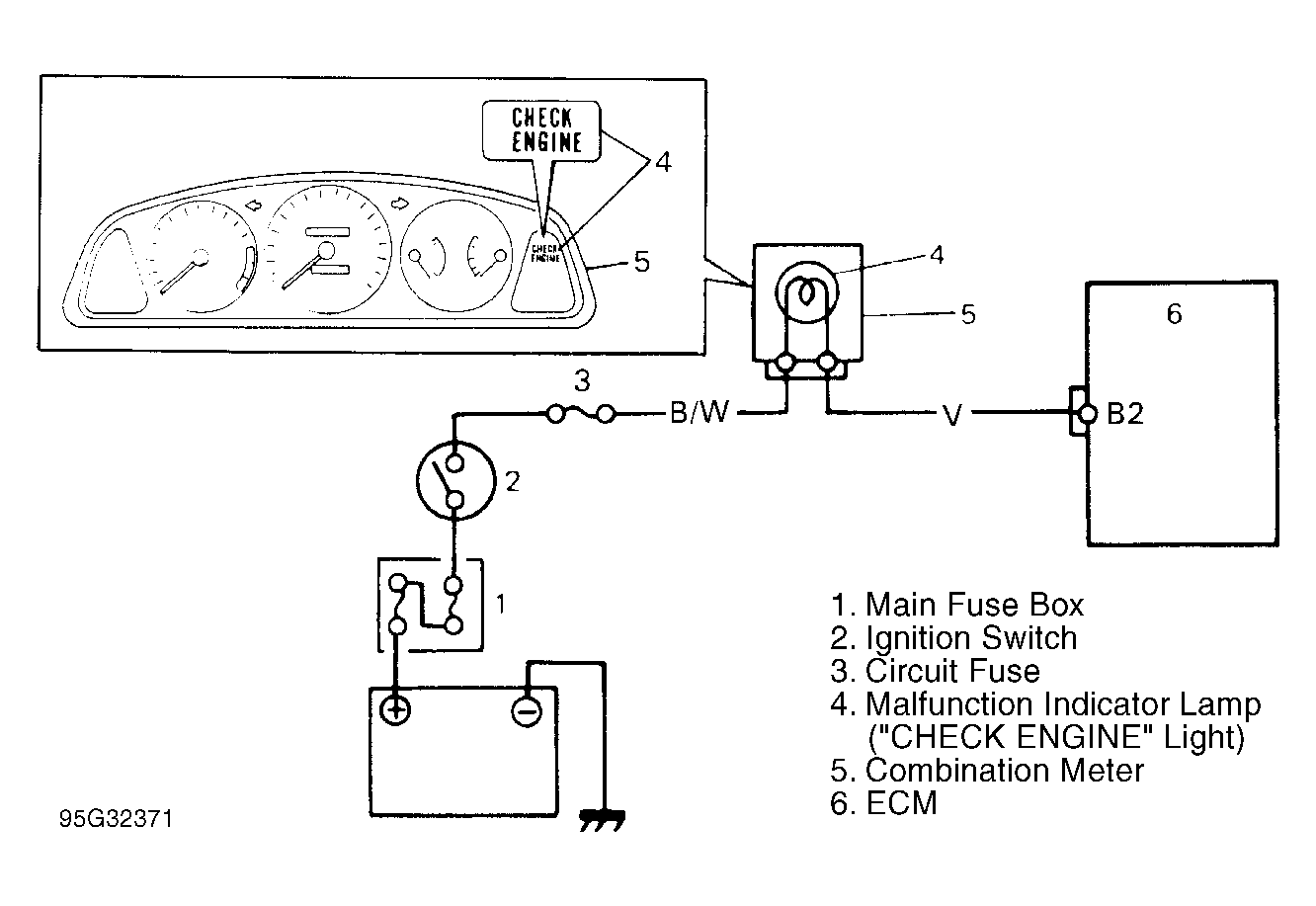

Fig 1: Chart A-2 - Circuit Diagram
G95G32371Courtesy of SUZUKI OF AMERICA CORP

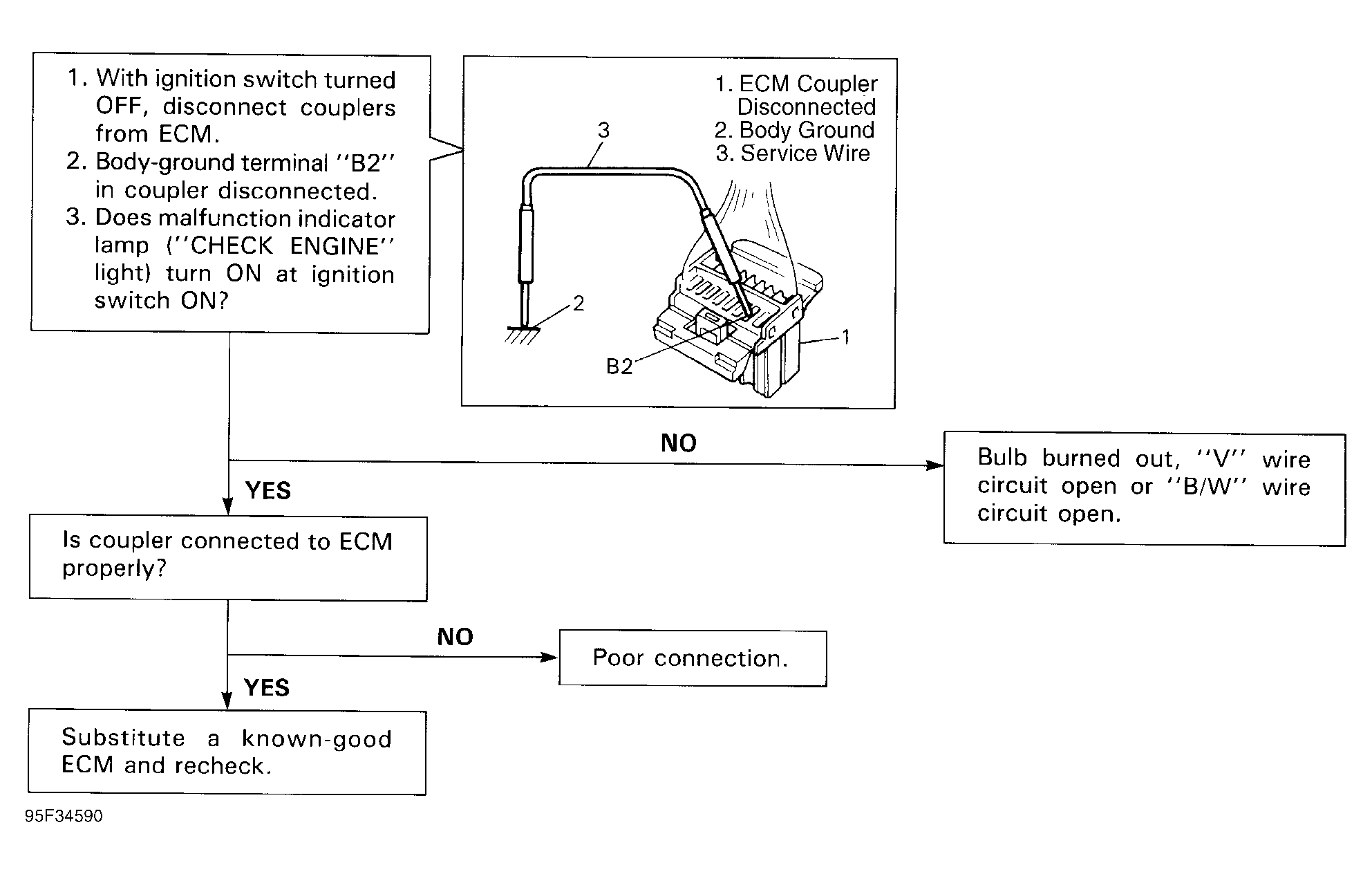

Fig 2: Chart A-2 - Flow Chart
G95F34590Courtesy of SUZUKI OF AMERICA CORP
