Chart A-2 - Check Engine Light Inoperative (Engine Starts)
Chart A-2 - Check Engine Light Inoperative (Engine Starts)

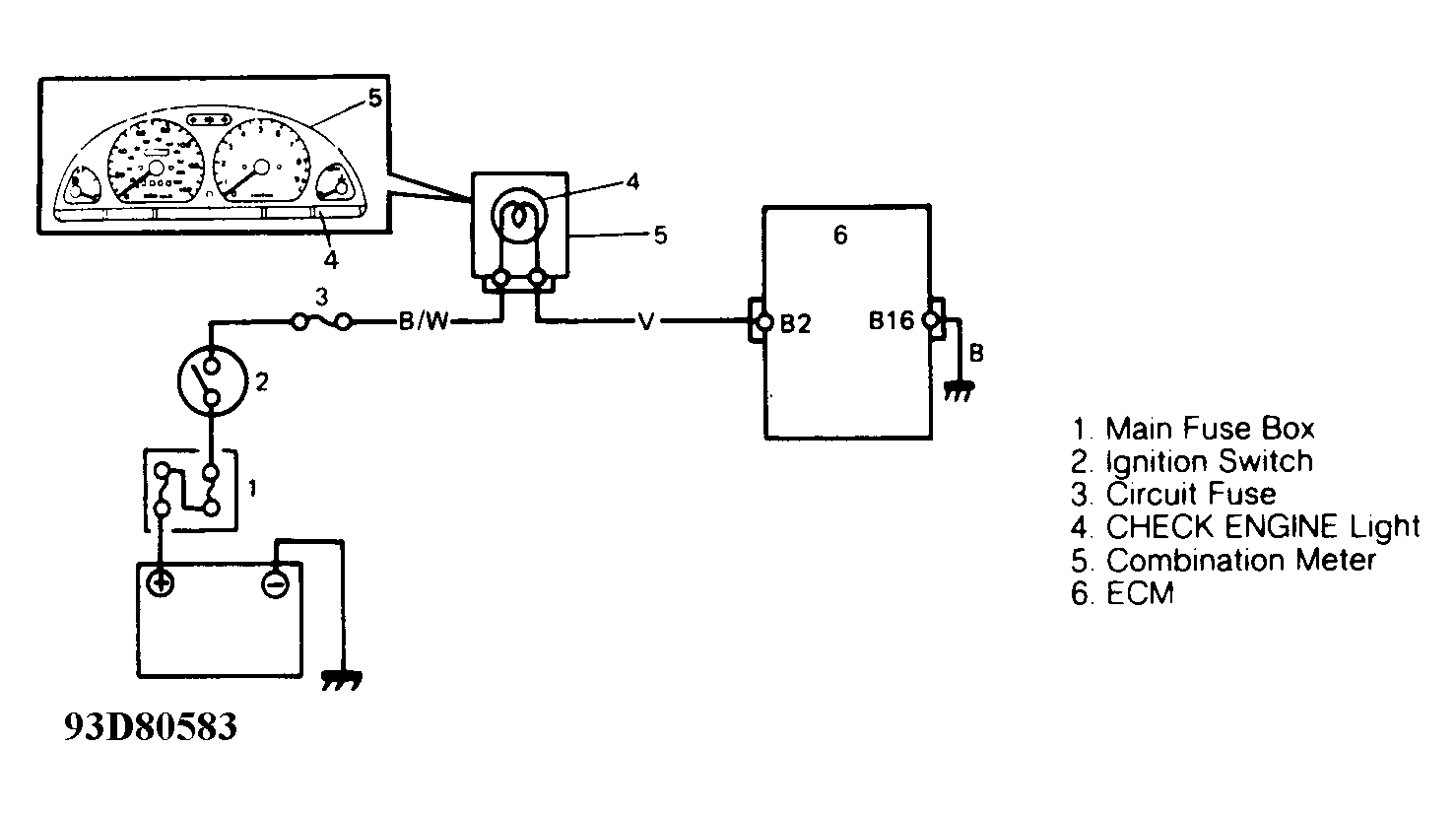

Fig 1: Chart A-2, Schematic - Check Engine Light Inoperative

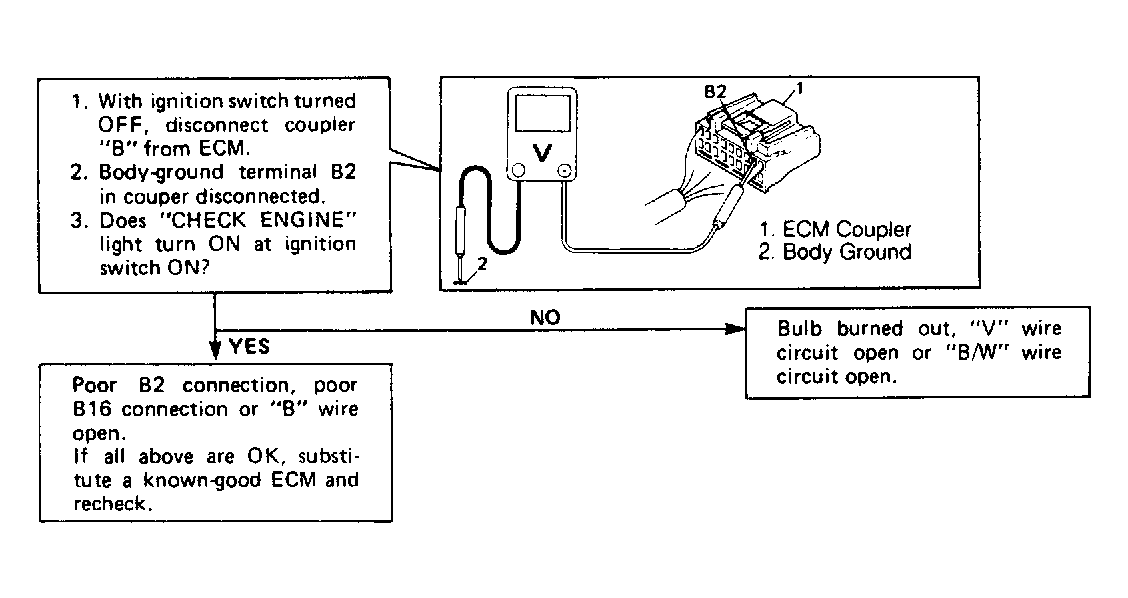

Fig 2: Chart A-2, Flow Chart - Check Engine Light Inoperative
