Engine Controls - Tests W/Codes - SOHC
>>
Diagnostic Flow Charts
>>
Initial Diagnostic Procedure
Initial Diagnostic Procedure

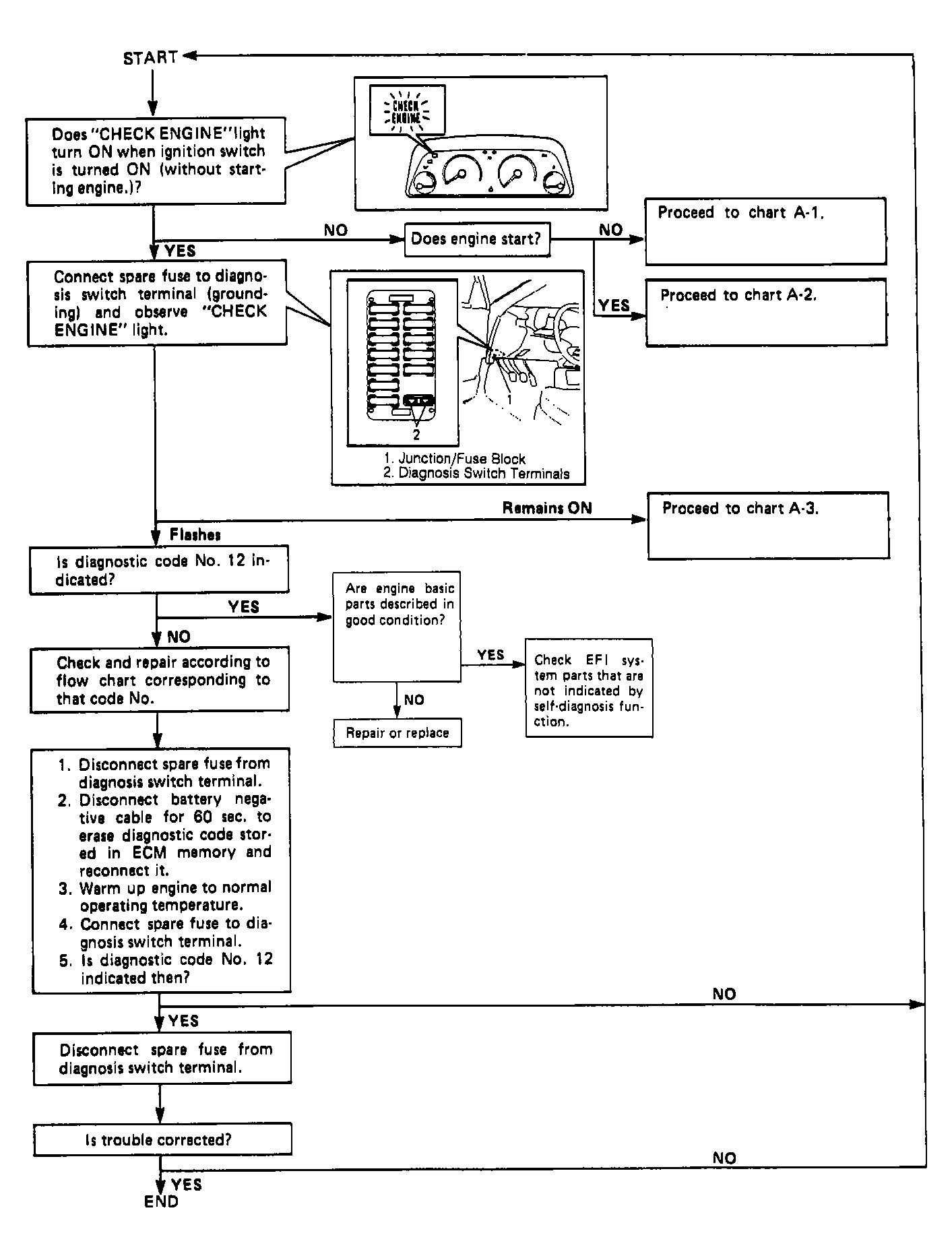

Fig 1: Initial Diagnostic Procedure Flow Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
