Idle-Up System

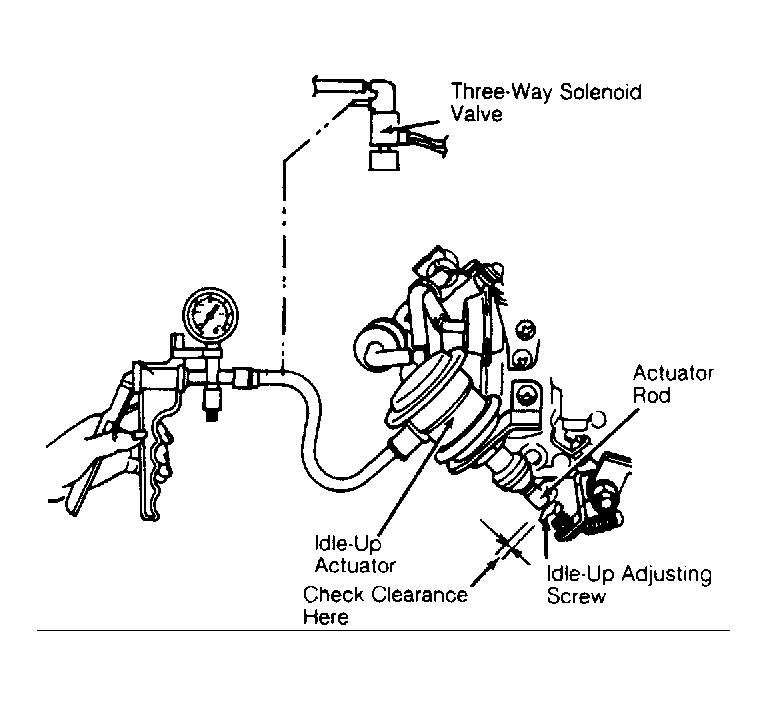

Attach hand vacuum pump to Three-Way Solenoid Valve (TWSV). See Fig 1 . Apply 16 in. Hg to actuator. Clearance between actuator rod and idle-up adjusting screw should be .10-.12" (2.5-3.0 mm). If not, adjust with idle-up adjusting screw.
