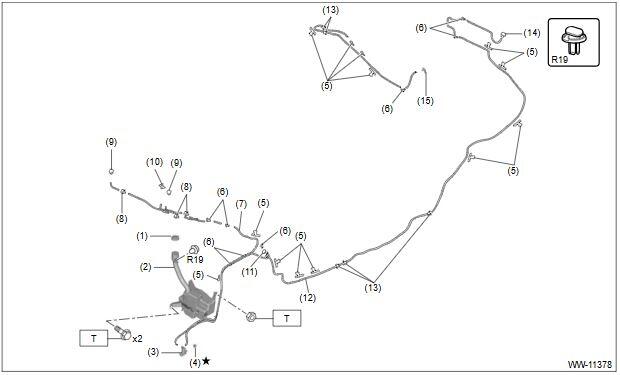

Outback Model
| (1) | Cap washer tank |
| (2) | Tank ASSY washer |
| (3) | Motor pump ASSY washer |
| (4) | Packing |
| (5) | Clip |
| (6) | Joint |
| (7) | Hose ASSY windshield washer |
| (8) | Check valve windshield washer |
| (9) | Nozzle windshield washer |
| (10) | Joint washer hose |
| (11) | Grommet |
| (12) | Hose ASSY rear washer |
| (13) | Cushion |
| (14) | Nozzle rear washer |
| (15) | Nozzle rear camera washer |
Tightening torque: N.M (kgf-m, ft-lb)
T: 6 (0.6, 4.4)
