Shift Lock Solenoid

Connect the shift lock solenoid terminal.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Wiring color
3	Blue
4	Black

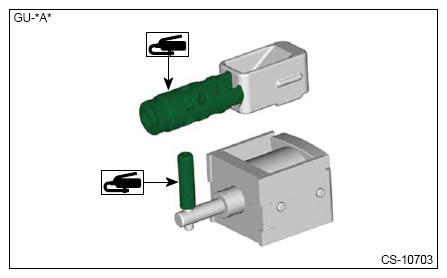

Apply grease to the shift lock and the shift lock solenoid.
Preparation items :

Grease: KYODO YUSHI Multemp D No. 2 or equivalent

Courtesy of SUBARU OF AMERICA, INC.

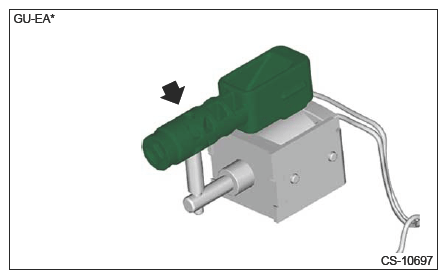

Install the shift lock.

Courtesy of SUBARU OF AMERICA, INC.
Install the shift lock solenoid to the select lever.
Install the connector to the select lever.
Install the bolt which holds the select lever.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the cover center side. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>INSTALLATION .
Install the console box. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
