Except For Models With Audio Amplifier
- Install the Auto Start Stop DC/DC converter 1.
- Install the Auto Start Stop DC/DC converter 1 to the bracket.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

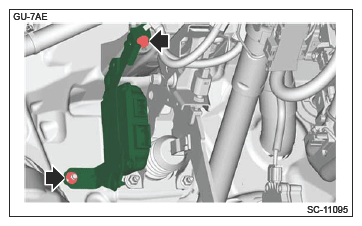

- Install the Auto Start Stop DC/DC converter 1 to the vehicle.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)

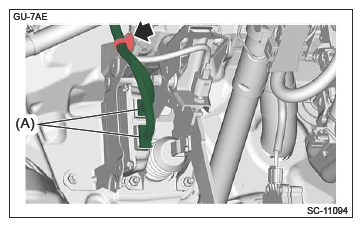

- Secure the vehicle harness to the bracket with the clip.
- Connect the connector (A).
- Install the Auto Start Stop DC/DC converter 1 to the bracket.
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
