Fuel Lid Lock/Unlock And Open/Close Operation

  1. Lock/unlock the door by keyless transmitter, access key or power door lock switch to check that the fuel lid locks and unlocks normally.
  2. With unlock condition, push the fuel lid to check the fuel lid can be opened normally.
  3. Operate the emergency release cable in the trunk room or luggage room to check that the fuel lid can be unlocked normally.
    1. Remove the trunk room cover. (Sedan model)
    2. Using a tool such as a flat tip screwdriver, remove the cover in the luggage room. (Except for sedan model)
      • Sedan model
        G13618264Courtesy of SUBARU OF AMERICA, INC.

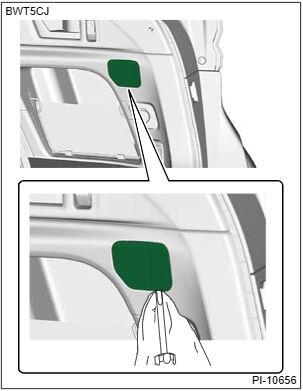

      • Except for sedan model
        Fig 1: G00658245
        G00658245Courtesy of SUBARU OF AMERICA, INC.
    3. Operate the emergency release cable to check the fuel lid can be unlocked normally.
      • Sedan model
        G13618266Courtesy of SUBARU OF AMERICA, INC.
      • Except for sedan model
        G13618267Courtesy of SUBARU OF AMERICA, INC.
