Rear ABS Wheel Speed Sensor: Removal

NOTE: Components: Ref. to VEHICLE DYNAMICS CONTROL (VDC)>GENERAL DESCRIPTION>COMPONENT>ABS WHEEL SPEED SENSOR .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

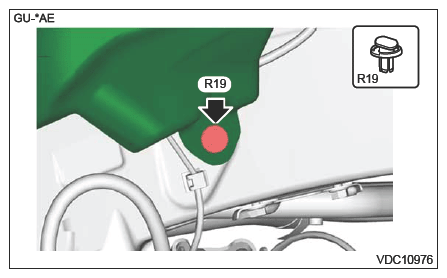

  3. Turn over the mud guard rear.
    1. Remove the clip.
    2. Turn over the mud guard rear.
      G16767251Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the sensor sub assembly rear.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.
    1. Disconnect the connector.
    2. Remove the harness clamp.

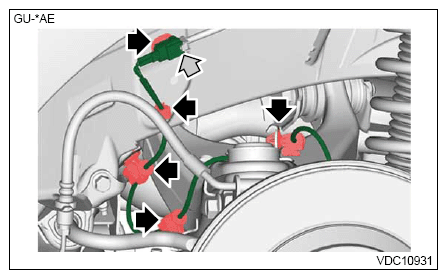

      • Impreza model
        G16767252Courtesy of SUBARU OF AMERICA, INC.

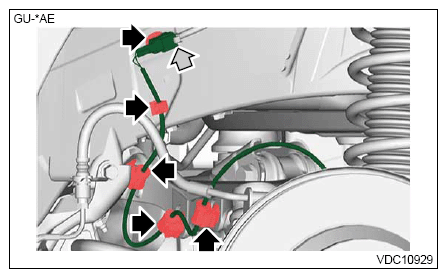

      • Crosstrek model
        G16767253Courtesy of SUBARU OF AMERICA, INC.

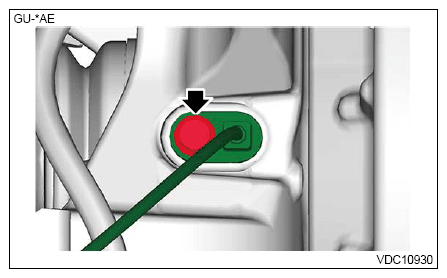

    3. Remove the bolt.
    4. Remove the sensor sub assembly rear.
      G16767254Courtesy of SUBARU OF AMERICA, INC.
