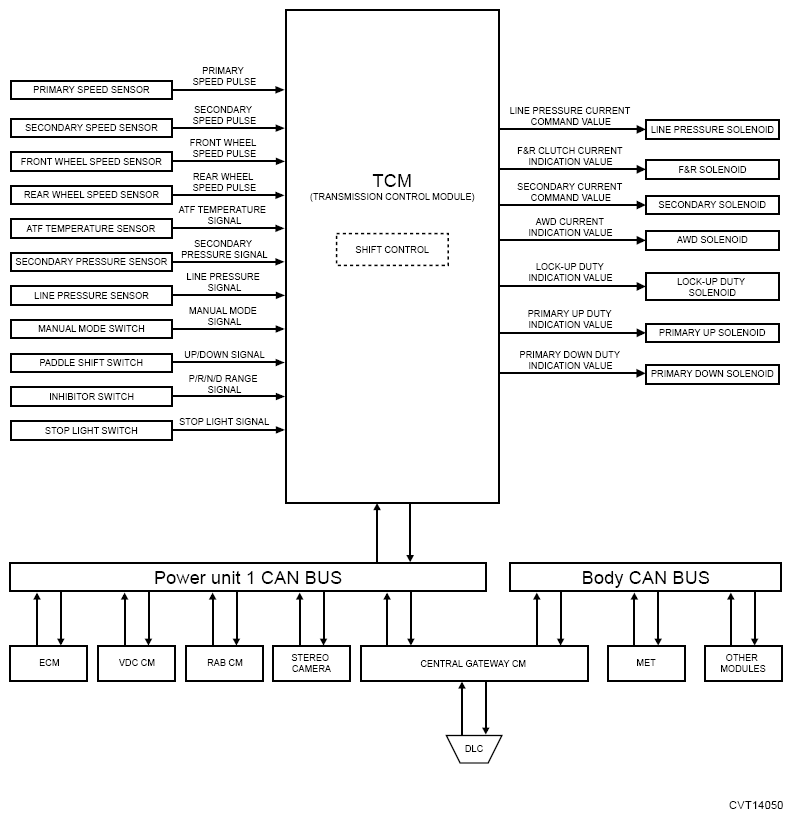

Home >> Subaru >> 2023 >> WRX Base, Standard Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Transmission (Diagnostics) >> General Description >> System Block Diagram
