On The Vehicle Inspection

  1. Check that there is no deformation, cracks or other damages.
  2. Check for excessive rusting.
  3. Check the front hub unit bearing for looseness. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>FRONT HUB UNIT BEARING>INSPECTION .

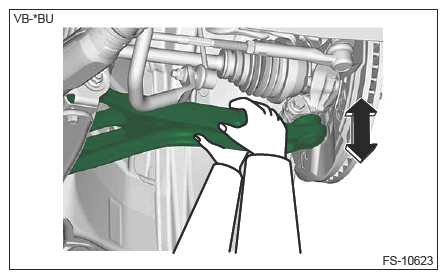

  4. Rock the arm assembly front up and down to check the ball joint for looseness.
    G14601746Courtesy of SUBARU OF AMERICA, INC.
  5. If fault is found in the inspection, replace the relevant part.
