Crankshaft And Piston

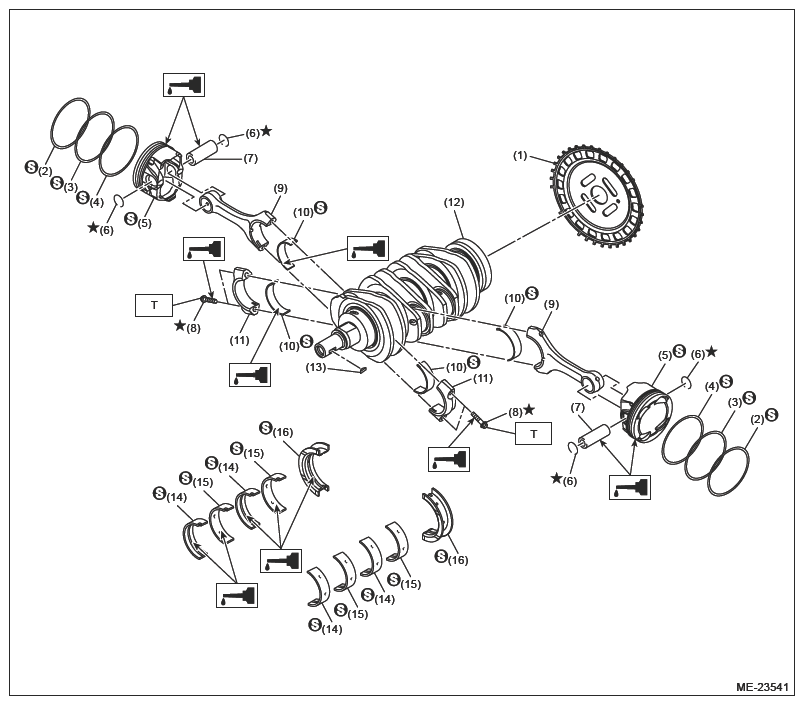

Fig 1: Crankshaft And Piston Components Location

G16535354

Courtesy of SUBARU OF AMERICA, INC.

(1)

Crankshaft position sensor plate⁽¹⁾

(2)

Top ring

(3)

Second ring

(4)

Oil ring

(5)

Piston

(6)

Circlip

(7)

Piston pin

(8)

Connecting rod cap bolt

(9)

Connecting rod

(10)

Connecting rod bearing

(11)

Connecting rod cap

(12)

Crankshaft

(13)

Woodruff key

(14)

Crankshaft bearing #1, #3

(15)

Crankshaft bearing #2, #4

(16)

Crankshaft bearing #5

⁽¹⁾	Tighten together with the drive plate (CVT model) or flywheel (MT model).

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DOTC)>CYLINDER BLOCK>INSTALLATION .
