General Description
>>
Location
>>

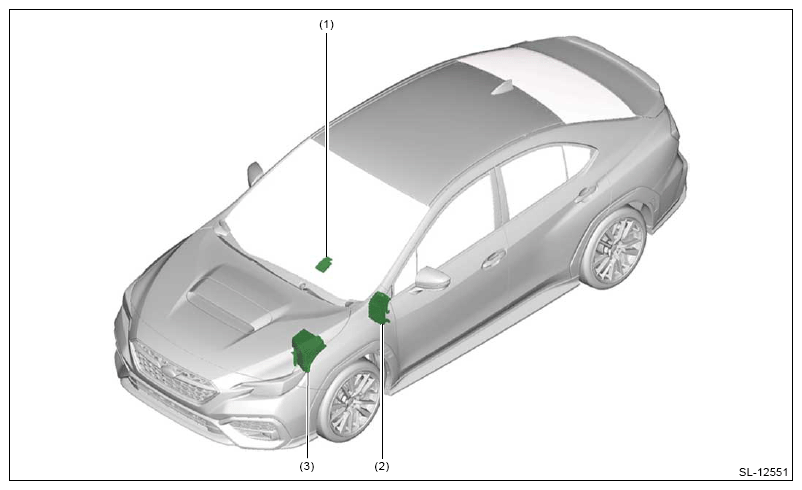

Body Control System
Body Control System
Courtesy of SUBARU OF AMERICA, INC.
(1)
Central gateway control module
(2)
Body integrated unit
(3)
Front relay control module (in the main fuse box)
Courtesy of SUBARU OF AMERICA, INC.
