Transmission Harness: Installation
- Install a new O-ring.NOTE: Apply CVTF to the O-rings.

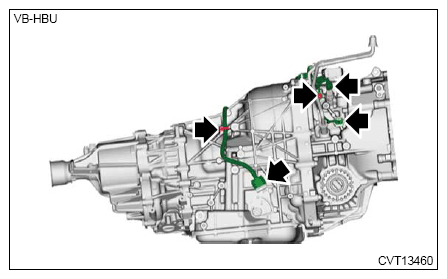

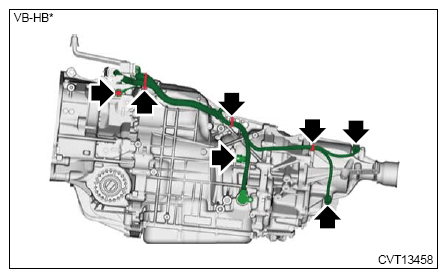

- Connect the connector and ground terminal as shown in the figure, and install the clips.
Tightening torque: 13 N.m (1.3 kgf-m, 9.6 ft-lb)
- Install the bolt which holds the transmission harness.
Tightening torque: 5 N.m (0.5 kgf-m, 3.7 ft-lb)
- Install the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>INSTALLATION .
- Remove the ST (STAND ASSY).
- Install the ground cord and stay.
Tightening torque: 16 N.m (1.6 kgf-m, 11.8 ft-lb)
- Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>INSTALLATION .
- Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>INSTALLATION .
