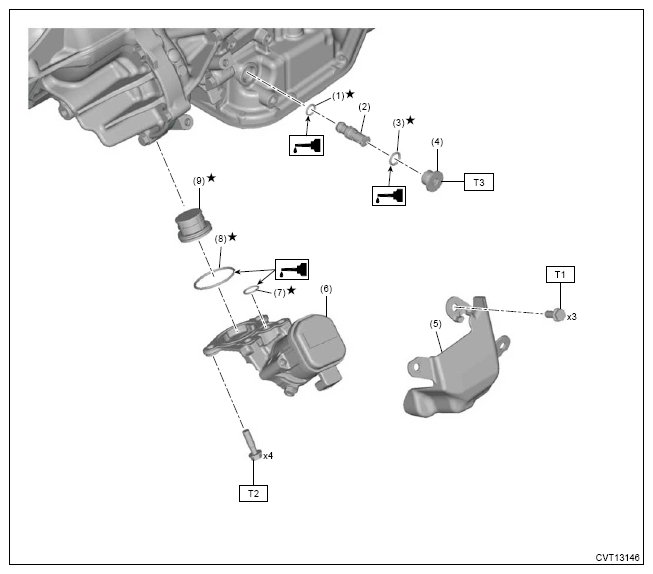

Electric Oil Pump
WARNING: This page is about a different variant/trim than selected.
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
O-ring |
| (2) |
Oil control valve holder |
| (3) |
O-ring |
| (4) |
Test plug (line pressure) |
| (5) |
Electric oil pump cover |
| (6) |
Electric oil pump |
| (7) |
O-ring |
| (8) |
O-ring |
| (9) |
CVTF filter |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 16 (1.6, 11.8)
T2: 22 (2.2, 16.2)
T3: 50 (5.1, 36.9)
