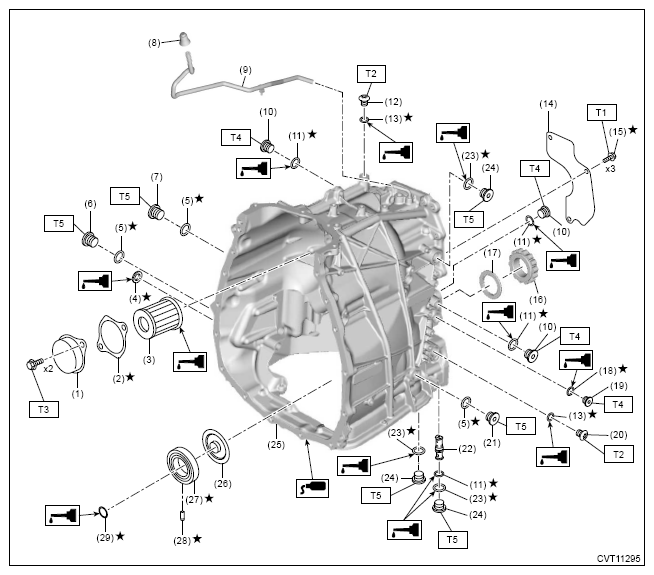

Transmission Case
| (1) | CVTF filter cover |
| (2) | Gasket |
| (3) | CVTF filter |
| (4) | Oil seal |
| (5) | Gasket |
| (6) | Filler plug (for overhaul) |
| (7) | Filler plug |
| (8) | Air breather cap |
| (9) | Air breather hose |
| (10) | Plug |
| (11) | O-ring |
| (12) | Plug |
| (13) | O-ring |
| (14) | Oil stopper plate |
| (15) | Micro-encapsulated bolt |
| (16) | Roller bearing |
| (17) | Thrust bearing |
| (18) | O-ring |
| (19) | Plug |
| (20) | Test plug (secondary pressure (line pressure)) |
| (21) | Plug |
| (22) | Oil control valve holder |
| (23) | O-ring |
| (24) | Plug |
| (25) | Transmission case |
| (26) | Oil guide |
| (27) | Ball bearing |
| (28) | Spring pin |
| (29) | Seal ring |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 9 (0.9, 6.6)
T2: 13 (1.3, 9.6)
T3: 17 (1.7, 12.5)
T4: 22 (2.2, 16.2)
T5: 50 (5.1, 36.9)
