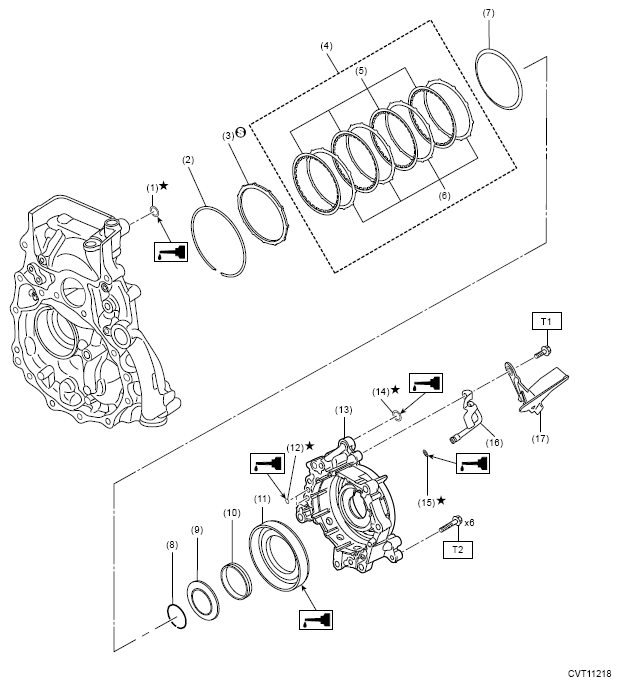

Reverse Brake
| (1) | O-ring |
| (2) | Snap ring |
| (3) | Retaining plate |
| (4) | Reverse brake |
| (5) | Drive plate |
| (6) | Driven plate |
| (7) | Dish plate |
| (8) | Snap ring |
| (9) | Spring retainer |
| (10) | Return spring |
| (11) | Reverse brake piston |
| (12) | O-ring |
| (13) | Reverse brake housing |
| (14) | O-ring |
| (15) | O-ring |
| (16) | Lubrication pipe |
| (17) | Oil guide |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 16 (1.6, 11.8)
T2: 37 (3.8, 27.3)
