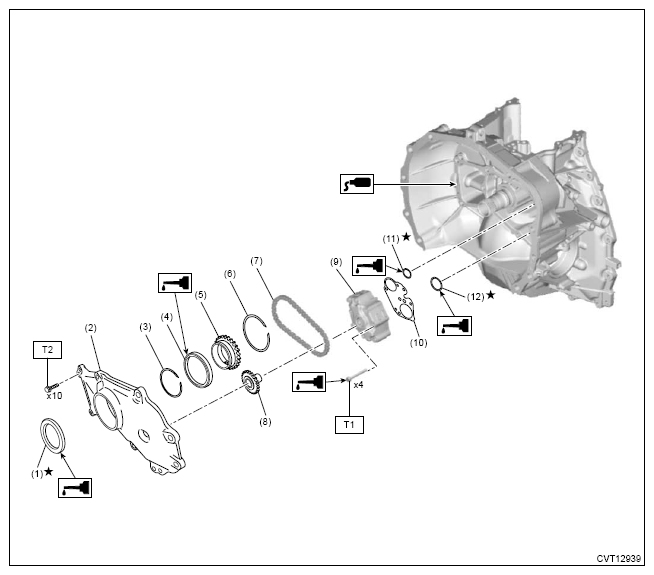

Oil Pump
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Oil seal |
| (2) |
Oil pump chain cover |
| (3) |
Snap ring |
| (4) |
Ball bearing |
| (5) |
Drive sprocket |
| (6) |
Snap ring |
| (7) |
Oil pump chain |
| (8) |
Driven sprocket |
| (9) |
Oil pump |
| (10) |
Plate |
| (11) |
O-ring |
| (12) |
O-ring |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8.5 (0.9, 6.3)
T2: 21 (2.1, 15.5)
