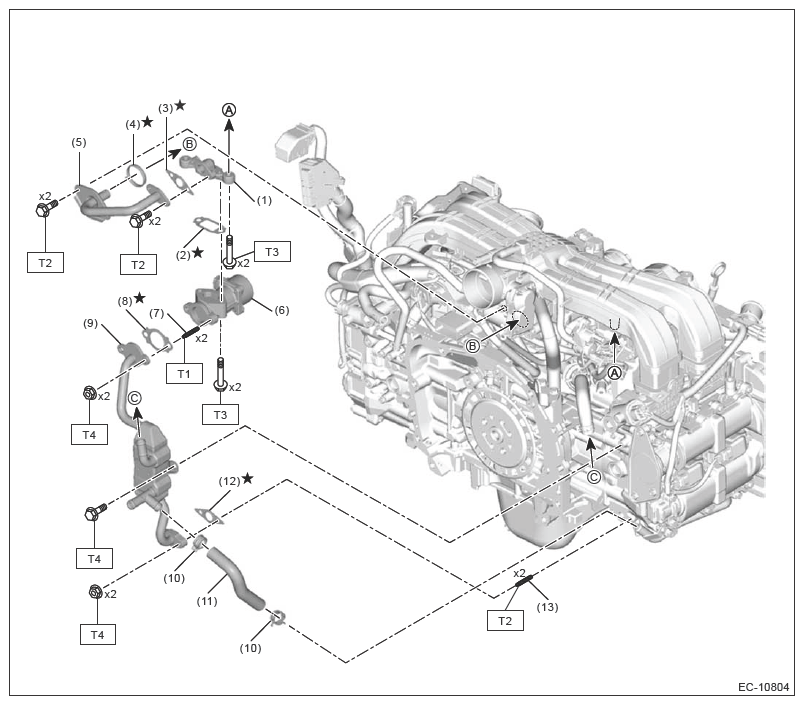

Exhaust Gas RECIRCULATION System
| (1) | EGR pipe adapter |
| (2) | Gasket |
| (3) | Gasket |
| (4) | O-ring |
| (5) | EGR pipe |
| (6) | EGR control valve |
| (7) | Stud bolt |
| (8) | Gasket |
| (9) | EGR cooler |
| (10) | Clip |
| (11) | Water hose |
| (12) | Gasket |
| (13) | Stud bolt |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 6.4 (0.7, 4.7)
T3: 19 (1.9, 14.0)
T4: Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>EGR COOLER>INSTALLATION .
