Components With Torque Specifications

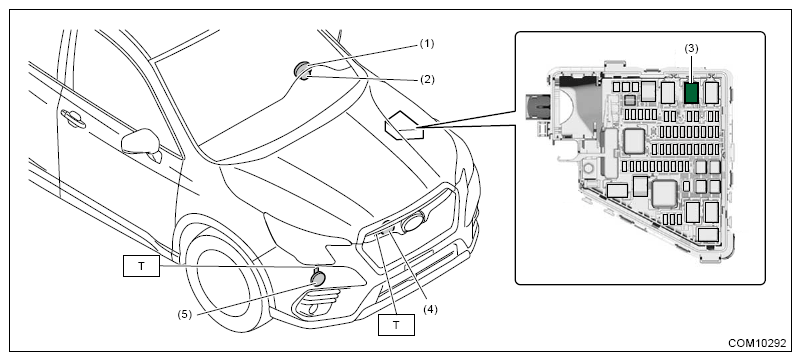

G16339133Courtesy of SUBARU OF AMERICA, INC.
(1) Horn switch (driver's airbag module)
(2) Steering roll connector
(3) Horn relay
(4) Horn ASSY Hi
(5) Horn ASSY Lo

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
