VSC (VDC) Control Module and Hydraulic Control Unit (VSCCM & H/U): Installation

CAUTION:
  • When installing the VSCCM & H/U to the VSCCM & H/U bracket, make sure that there is no oil adhered to the nuts and the threads of VSCCM & H/U. If the oil is adhered, degrease it carefully before tightening.
  • Connect the VSCCM & H/U connector securely.
  • When the hydraulic unit assembly VSC (VDC) has been replaced, be sure to perform the module registration.
  1. Attach the bracket COMPL hydraulic unit VSC (VDC).

    Tightening torque:

    33 N.m (3.4 kgf-m, 24.3 ft-lb)

  2. Using a new damper, washers, and nuts, install the hydraulic unit assembly VSC (VDC) to the bracket COMPL hydraulic unit VSC (VDC).

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  3. Install the brake pipe using a flare nut wrench and a crowfoot wrench.
    NOTE: If the work can be performed with the front and back sides reversed, it is also possible to use a 6-point crowfoot wrench.

    Tightening torque:

    Calculation formula

    T1 = 15 N.m (1.5 kgf-m, 11.1 ft-lb) x L1/(L1 + L2)

    T2 = 19 N.m (1.9 kgf-m, 14.0 ft-lb) x L1/(L1 + L2)

    T: Reading of the torque wrench

    L1: Effective length of the torque wrench

    L2: Effective length of the crowfoot wrench

    NOTE: If the effective length of the tool used is unknown, consult the manufacturer of the tool.
    G16349749Courtesy of SUBARU OF AMERICA, INC.
    1. Effective length of the crowfoot wrench (L2)
    2. Effective length of the torque wrench (L1)
    3. Center of the open end of crowfoot wrench
    4. Center of drive square of the torque wrench
    5. Center of the position where a force is applied by hand

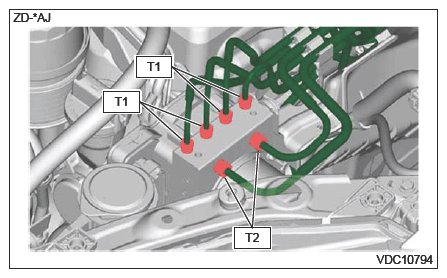

    Fig 1: Brake Pipe Flare Nuts With Torque Specification
    G16525202Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the hydraulic unit assembly VSC (VDC) connector.
  5. Install the mud guard front LH. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>INSTALLATION .
  6. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  7. Bleed air from the brake system. Ref. to BRAKE>AIR BLEEDING>PROCEDURE .
  8. Install the wheel. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>INSTALLATION .
  9. When the hydraulic unit assembly VSC (VDC) has been replaced, perform the module registration. Ref. to COMMON (DIAGNOSTICS)>UNIT REGISTRATION>OPERATION .
  10. Perform VSC (VDC) sensor midpoint setting mode. Ref. to VEHICLE STABILITY CONTROL>VSC (VDC) CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VSCCM & H/U)>ADJUSTMENT>VSC (VDC) SENSOR MIDPOINT SETTING MODE .
