Second-Row Seat
- Bench seat type (RH side)

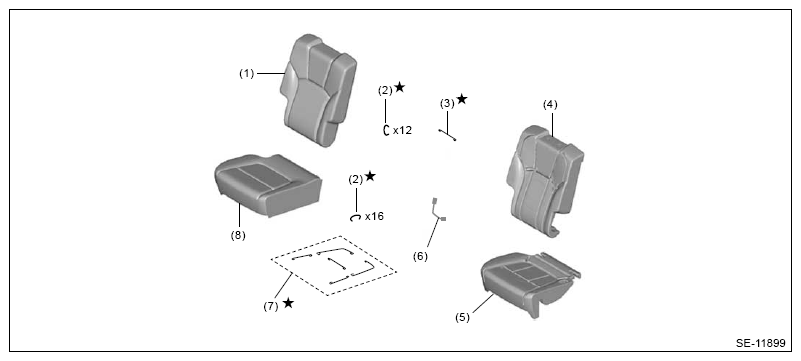

(1) Cover second-row seat backrest (2) Hog ring (3) Wire set second-row seat backrest(1) (4) Seat pad ASSY backrest rear (5) Seat pad ASSY cushion rear (7) Wire set second-row seat cushion* (8) Cover second-row seat cushion (6) Harness ASSY seat heater (1) Shapes and specifications vary depending on the grade. Courtesy of SUBARU OF AMERICA, INC.

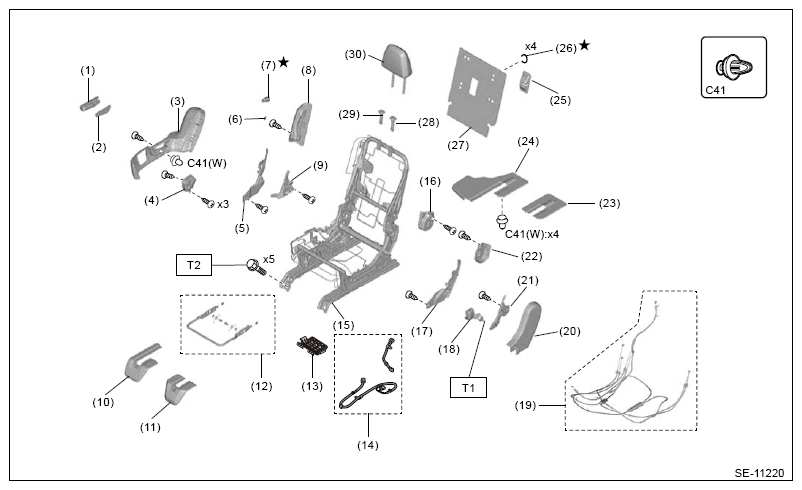

(1) Lever hinge knob (2) Cover hinge outside cap (3) Cover hinge outside (4) Lever folding down (5) Cover hinge INN UPR outside (6) Cover walk-in cap (7) Lever walk-in (8) Cover walk-in (9) Cover hinge INN LWR outside (10) Cover bolt front outside second (11) Cover bolt front inside second (12) Slide lever (component) (13) Harness holder RH (14) Second-row seat harness RH (15) Frame seat ASSY (16) Cover reclining hinge INN outside (17) Cover hinge INN LWR inside (18) Belt ASSY second INN RH (19) Seat cable (component) (20) Cover hinge inside (21) Cover hinge INN UPR inside cover (22) Cover reclining hinge INN inside (23) Cover bolt rear inside second (24) Cover bolt rear outside second cover (25) Cover tether (26) Hog ring (27) Board backrest (28) Bushing headrest lock (29) Bushing headrest free (30) Headrest ASSY second outside Tightening torque: N.m (kgf-m, ft-lb)
T1: 30 (3.1, 22.1)
T2: 53 (5.4, 39.1)
- Bench seat type (LH side)
Courtesy of SUBARU OF AMERICA, INC.

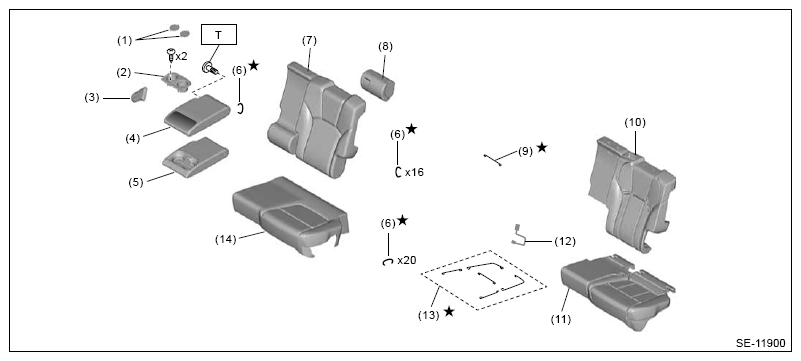

(1) Rubber bottom (2) Cup holder rear (3) Cover armrest hinge (4) Cover armrest (5) Armrest pad & frame (6) Hog ring (7) Cover second-row seat backrest (8) Pad under ASSY (9) Wire set second-row seat backrest* (10) Seat pad ASSY backrest rear (11) Seat pad ASSY cushion rear (12) Harness ASSY seat heater (13) Wire set second-row seat cushion* (14) Cover second-row seat cushion (1) Shapes and specifications vary depending on the grade. Tightening torque: N.m (kgf-m, ft-lb)
T: 9.8 (1.0, 7.2)
Courtesy of SUBARU OF AMERICA, INC.

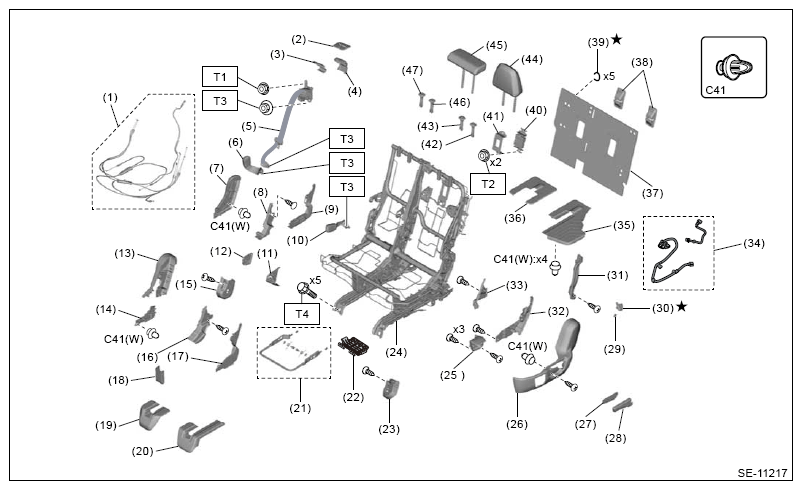

(1) Seat cable (component) (2) Guide belt cover UPR (3) Guide belt cover INN (4) Guide belt cover OUT (5) Seat belt OUT second CTR (6) Seat belt INN second LH (7) Cover hinge inside ASSY (8) Cover hinge INN UPR inside (9) Cover hinge INN LWR inside (10) Seat belt INN second CTR (11) Cover armrest guide outside (12) Cover armrest guide inside (13) Cover hinge center ASSY (14) Cover hinge center OUT (15) Cover reclining hinge INN inside (16) Cover hinge INN UPR center (17) Cover hinge INN LWR center (18) Cover riser cap (19) Cover bolt front inside second (20) Cover bolt front outside second (21) Slide lever (component) (22) Harness holder LH (23) Cover reclining hinge INN outside (24) Frame seat ASSY (25) Lever folding down (26) Cover hinge outside (27) Cover hinge outside cap (28) Lever hinge knob (29) Cover walk-in cap (30) Lever walk-in (31) Cover walk-in (32) Cover hinge INN LWR outside (33) Cover hinge INN UPR outside (34) Second-row seat harness LH (35) Cover bolt rear outside second (36) Cover bolt rear inside second (37) Board backrest (38) Cover tether (39) Hog ring (40) Dynamic damper ASSY (41) Plate dynamic damper (42) Bushing headrest lock (43) Bushing headrest free (44) Headrest ASSY second outside (45) Headrest ASSY second CTR (46) Bushing headrest lock CTR (47) Bushing headrest free CTR Tightening torque: N.m (kgf-m, ft-lb)
T1: 5.9 (0.6, 4.4)
T2: 14.4 (1.4, 10.5)
T3: 30 (3.1, 22.1)
T4: 53 (5.4, 39.1)
- Captain seat type (RH side)
(1) Cover second-row seat backrest (2) Hog ring (3) Wire set second-row seat backrest (4) Seat pad ASSY backrest rear (5) Seat pad ASSY cushion rear (6) Harness ASSY seat heater (7) Wire set second-row seat cushion (8) Cover second-row seat cushion Courtesy of SUBARU OF AMERICA, INC.

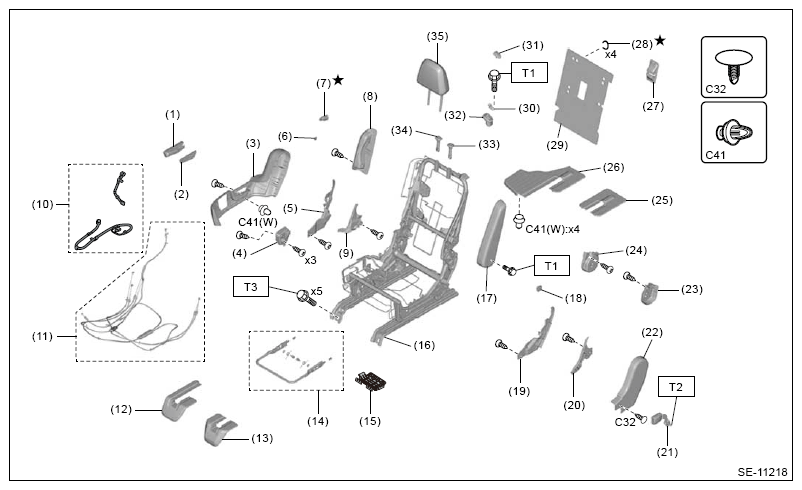

(1) Lever hinge knob (2) Cover hinge OUT cap (3) Cover hinge OUT (4) Lever folding down (5) Cover hinge outside INN UPR (6) Cover walk-in cap (7) Lever walk-in (8) Cover walk-in (9) Cover hinge outside INN LWR (10) Second-row seat harness RH (11) Seat cable (component) (12) Cover bolt front outside second (13) Cover bolt front inside second (14) Slide lever (component) (15) Harness holder RH (16) Frame seat ASSY (17) Armrest ASSY (18) Cap armrest (19) Cover hinge INN LWR inside (20) Cover hinge INN UPR inside (21) Seat belt INN second-row seat RH (22) Cover hinge INN (23) Cover reclining hinge INN inside (24) Cover reclining hinge INN outside (25) Cover bolt rear inside second (26) Cover bolt rear outside second (27) Cover tether (28) Hog ring (29) Board backrest (30) Knob BRKT (31) Knob cover (32) Knob (33) Bushing headrest lock (34) Bushing headrest free (35) Headrest ASSY second outside Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 30 (3.1, 22.1)
T3: 53 (5.1, 39.1)
- Captain seat type (LH side)

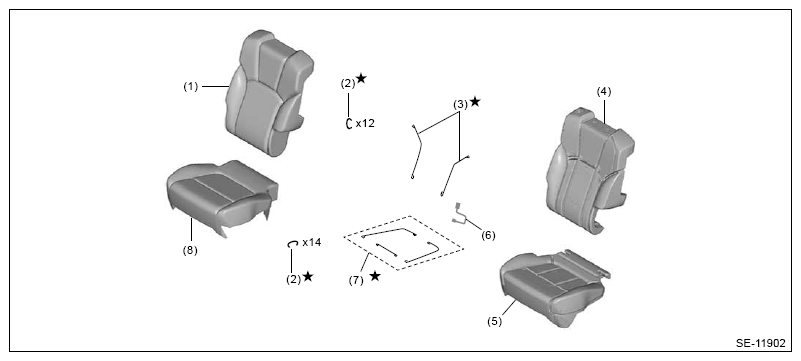

(1) Cover second-row seat backrest (2) Hog ring (3) Wire set second-row seat backrest (4) Seat pad ASSY backrest rear (5) Seat pad ASSY cushion rear (6) Harness ASSY seat heater (7) Wire set second-row seat cushion (8) Cover second-row seat cushion Courtesy of SUBARU OF AMERICA, INC.

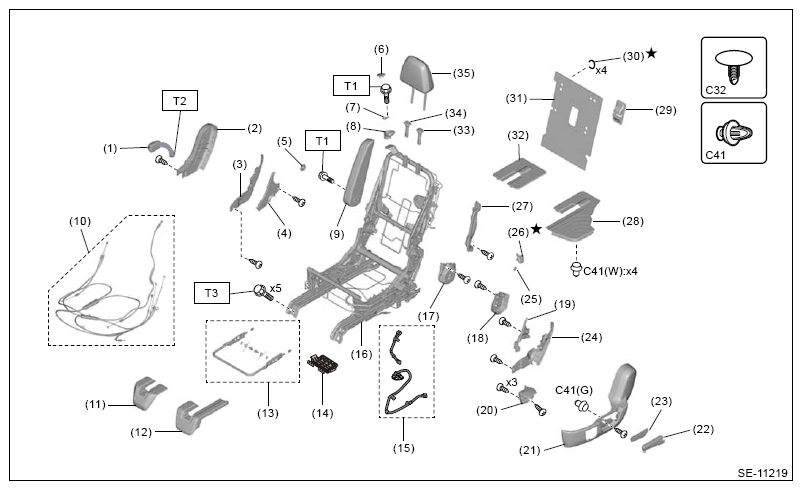

(1) Seat belt INN second-row seat LH (2) Cover hinge INN (3) Cover hinge INN LWR inside (4) Cover hinge INN UPR inside (5) Cap armrest (6) Knob cover (7) Knob BRKT (8) Knob (9) Armrest ASSY (10) Seat cable (component) (11) Cover bolt front inside second (12) Cover bolt front outside second (13) Slide lever (component) (14) Harness holder LH (15) Second-row seat harness LH (16) Frame seat ASSY (17) Cover reclining hinge INN inside (18) Cover reclining hinge INN outside (19) Cover hinge outside INN UPR (20) Lever folding down (21) Cover hinge OUT (22) Lever hinge knob (23) Cover hinge OUT cap (24) Cover hinge outside INN LWR (25) Cover walk-in cap (26) Lever walk-in (27) Cover walk-in (28) Cover bolt rear outside second (29) Cover tether (30) Hog ring (31) Board backrest (32) Cover bolt rear inside second (33) Bushing headrest lock (34) Bushing headrest free (35) Headrest ASSY second outside Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 30 (3.1, 22.1)
T3: 53 (5.1, 39.1)

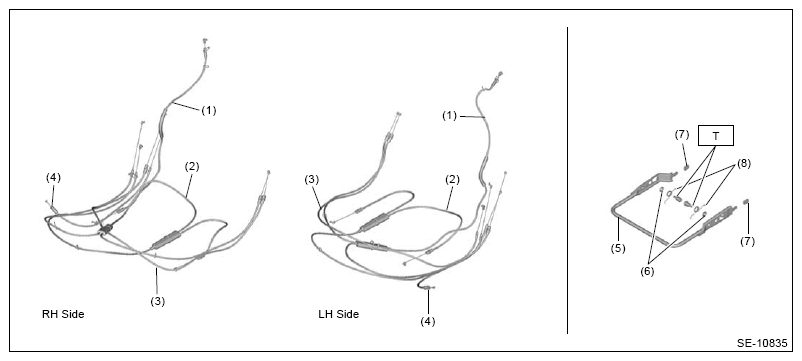

- Wire cable & slide lever
| (1) | Wire walk-in cable |
| (2) | Wire slide cable |
| (3) | Wire reclining cable |
| (4) | Wire folding cable |
| (5) | Lever slide |
| (6) | Lever slide bushing |
| (7) | Lever slide cover |
| (8) | Lever slide spring |
Tightening torque: N.m (kgf-m, ft-lb)
T: 9.3 (0.9, 6.9)
