Wilderness Model

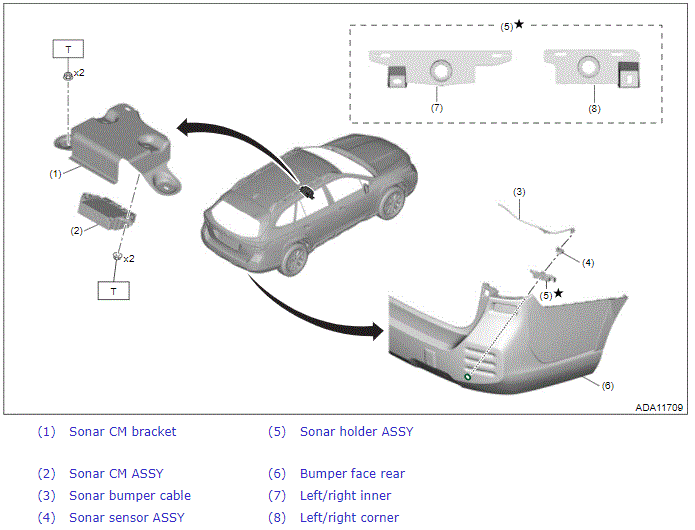

Fig 1: Reverse Automatic Braking Control Module And Sonar Sensor Components (Wilderness Model)

G00608672

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
