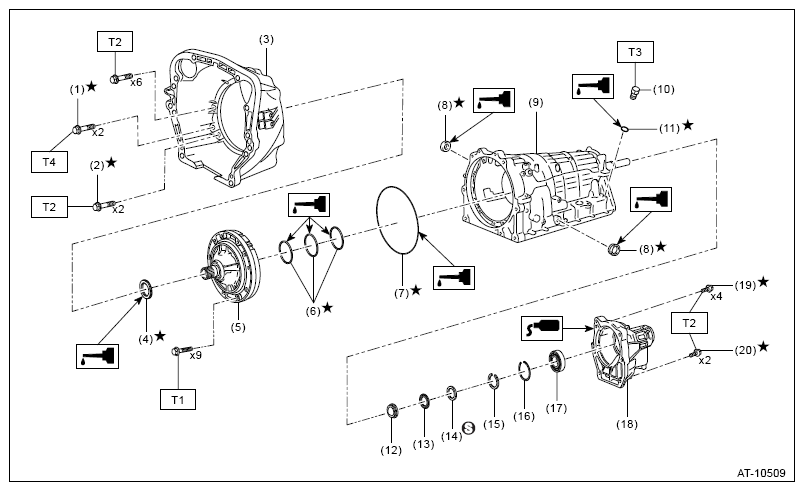

Transmission Case & Oil Pump
| (1) | Bolt |
| (2) | Bolt |
| (3) | Converter case |
| (4) | Oil seal |
| (5) | Oil pump |
| (6) | Seal ring |
| (7) | O-ring |
| (8) | Oil seal |
| (9) | Transmission case |
| (10) | Plug |
| (11) | O-ring |
| (12) | Front output shaft thrust bearing race |
| (13) | Output shaft thrust bearing |
| (14) | Rear output shaft thrust bearing race |
| (15) | Snap ring |
| (16) | Snap ring |
| (17) | Bearing |
| (18) | Extension case |
| (19) | Bolt |
| (20) | Bolt |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 21 (2.1, 15.5)
T2: 34 (3.5, 25.1)
T3: 39 (4.0, 28.8)
T4: 57 (5.8, 42.0)
