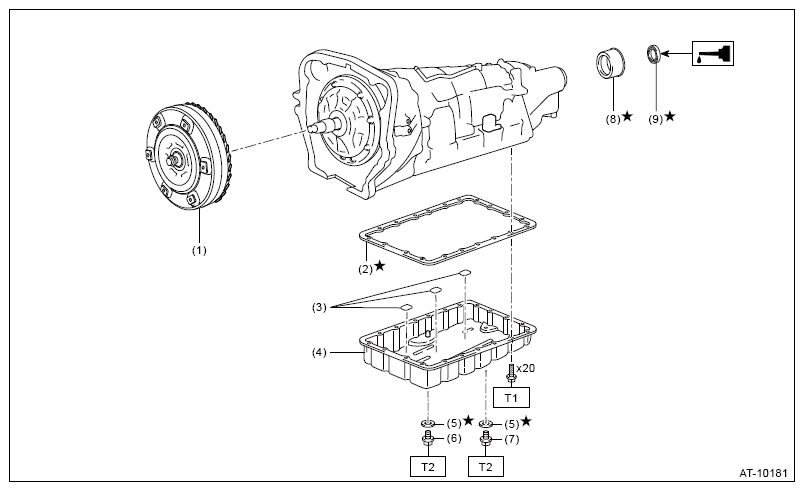

Torque Converter & Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Torque converter |
| (2) |
Gasket |
| (3) |
Magnet |
| (4) |
Oil pan |
| (5) |
Gasket |
| (6) |
Overflow plug |
| (7) |
Drain plug |
| (8) |
Dust cover |
| (9) |
Extension case oil seal |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7 (0.7, 5.2)
T2: 20 (2.0, 14.8)
