Power Rear Gate Inner Switch Does Not Function

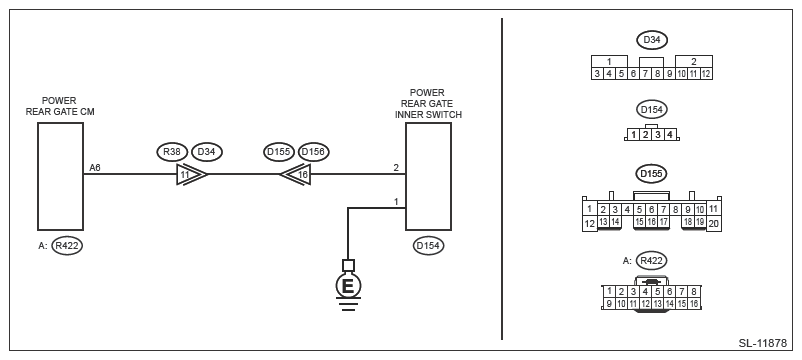

Wiring diagram:
Power rear gate system Ref. to WIRING SYSTEM>Power Rear Gate System>WIRING DIAGRAM .
- CHECK DATA MONITOR
.
Using Subaru Select Monitor, check [R/G inner SW]. Ref. to POWER REAR GATE (DIAGNOSTICS)>DATA MONITOR .
Does the display switch between OFF ←→ ON according to power rear gate inner switch operation?
Yes :
Input circuit is normal.
No :
Go to 2.
- CHECK HARNESS (OPEN CIRCUIT)
.
- Disconnect the Power rear gate control module connector in the order of (R423) → (R422).
- Disconnect the power rear gate inner switch connector.
- Measure the resistance between Power rear gate control module connector and power rear gate inner switch connector.
Connector & terminal
(R422) No. 6 - (D154) No. 2:
Is the resistance less than 10 Ω?
Yes :
Go to 3.
No :
Repair or replace the open circuit of harness.
- CHECK HARNESS (GROUND SHORT CIRCUIT)
.
Measure the resistance between Power rear gate control module connector and chassis ground.
Connector & terminal
(R422) No. 6 - Chassis ground:
Is the resistance 1 MΩ or more?
Yes :
Go to 4.
No :
Repair or replace the short circuit of the harness.
- CHECK HARNESS (OPEN CIRCUIT)
.
Measure the resistance between power rear gate inner switch and chassis ground.
Connector & terminal
(D154) No. 1 - Chassis ground:
Is the resistance less than 10 Ω?
Yes :
Go to 5.
No :
Repair or replace the open circuit of harness.
- CHECK POWER REAR GATE INNER SWITCH
.
Check the resistance between power rear gate inner switch terminals.
Terminals
No. 1 - No. 2:
Is the resistance 1 MΩ or more at OFF, and less than 1 Ω at ON?
Yes :
Go to 6.
No :
Replace the power rear gate inner switch. Ref. to POWER REAR GATE SYSTEM>POWER REAR GATE INNER SWITCH .
- CHECK CONNECTOR
.
Is there poor contact of connector?
Yes :
Repair or replace the poor contact of connector.
No :
Replace Power rear gate control module. Ref. to POWER REAR GATE SYSTEM>POWER REAR GATE CONTROL MODULE .
