Special Tool
WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
- |
SUBARU SELECT MONITOR 4 |
Used for setting of each function and troubleshooting for electrical system.
NOTE:
For detailed operation procedures, refer to "Help" of application.
|
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299AG040 |
TEST HARNESS Y |
Used for troubleshooting seat belt buckle switch. |
 Courtesy of SUBARU OF AMERICA, INC.
|
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299XA030 |
TEST HARNESS AE |
TEST HARNESS Y adapter harness. Used for troubleshooting seat belt buckle switch. |
 Courtesy of SUBARU OF AMERICA, INC.
|
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299XA000 |
TEST HARNESS AB |
Used when measuring voltage and resistance of occupant detection system. |
 Courtesy of SUBARU OF AMERICA, INC.
|
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299FL020 |
TEST HARNESS BB |
Used when measuring voltage and resistance of occupant detection system. |
 Courtesy of SUBARU OF AMERICA, INC.
|
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299FL030 |
TEST HARNESS BC |
Used when measuring voltage and resistance of occupant detection system.
Two sets may be required. |
 Courtesy of SUBARU OF AMERICA, INC.
|
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299XC000 |
TEST HARNESS BD |

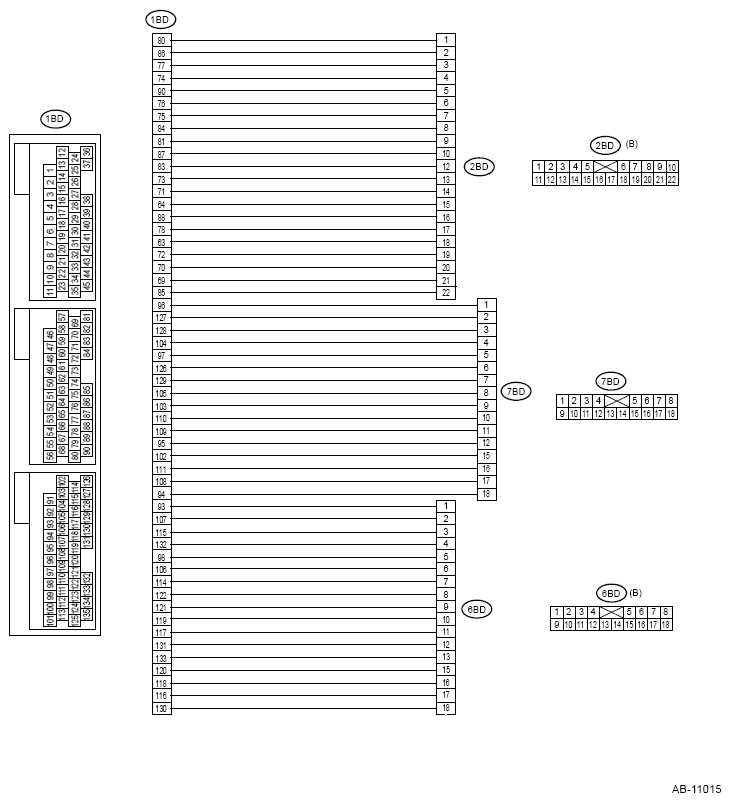

Used when measuring voltage and resistance of airbag control module. |
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
| ILLUSTRATION |
TOOL NUMBER |
DESCRIPTION |
REMARKS |
 Courtesy of SUBARU OF AMERICA, INC.
|
98299AG060 |
TEST HARNESS D |
Used for troubleshooting seat belt buckle switch. |
 Courtesy of SUBARU OF AMERICA, INC.
|
