Example Of Writing For The Check Sheet Of Communication For Initializing

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

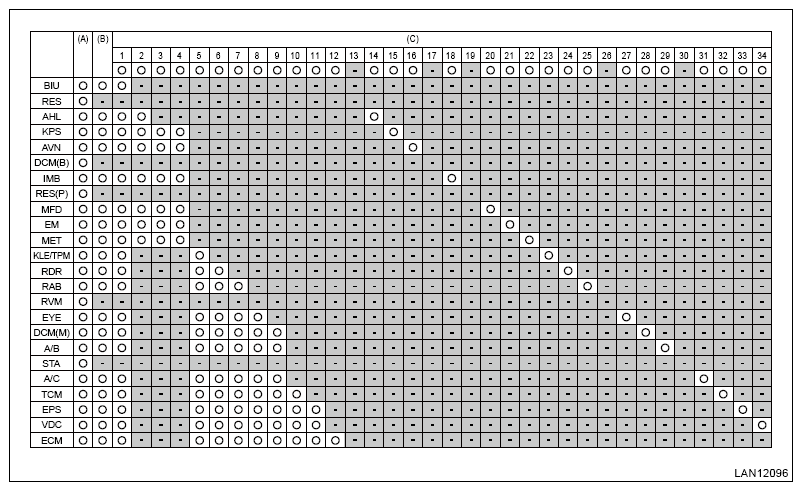

When No. 1 is open
NOTE: Perform the inspection from step 6 using the check sheet of communication for initializing. (There may be a malfunction other than open circuit) Go to 6.

Courtesy of SUBARU OF AMERICA, INC.

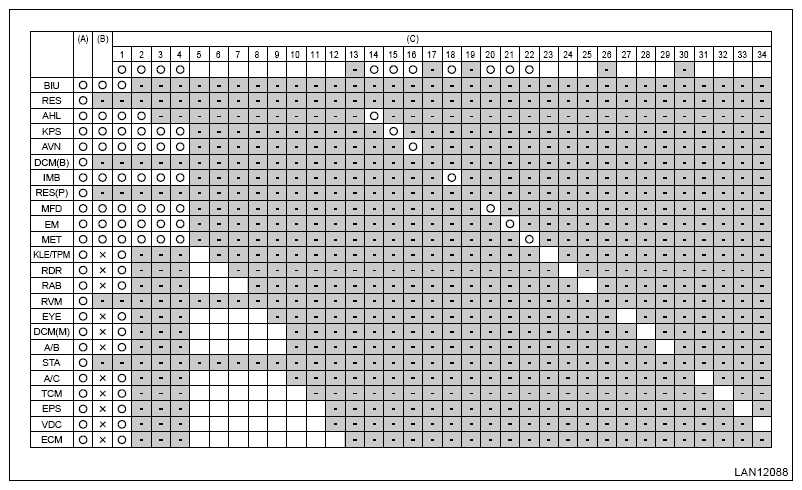

When No. 2 is open

Courtesy of SUBARU OF AMERICA, INC.

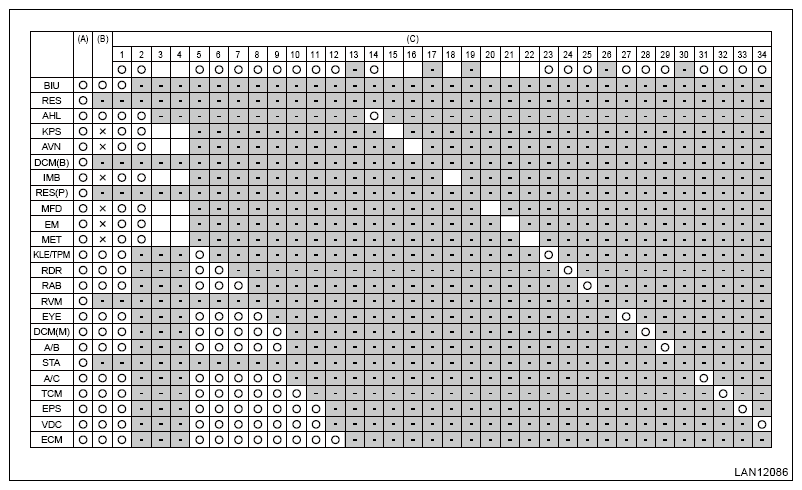

When No. 3 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 4 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 5 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 6 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 7 is open

Courtesy of SUBARU OF AMERICA, INC.

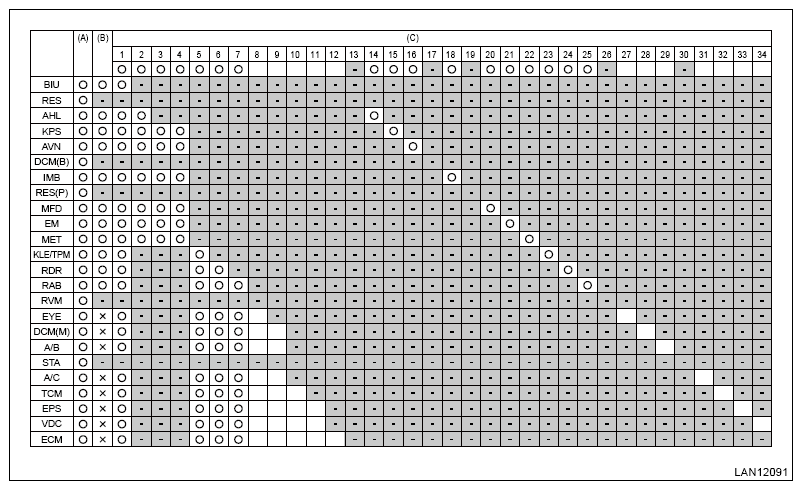

When No. 8 is open

Courtesy of SUBARU OF AMERICA, INC.

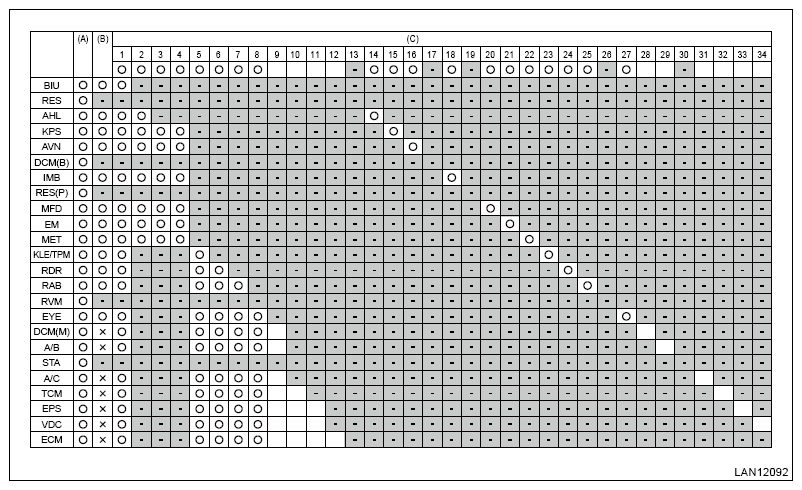

When No. 9 is open

Courtesy of SUBARU OF AMERICA, INC.

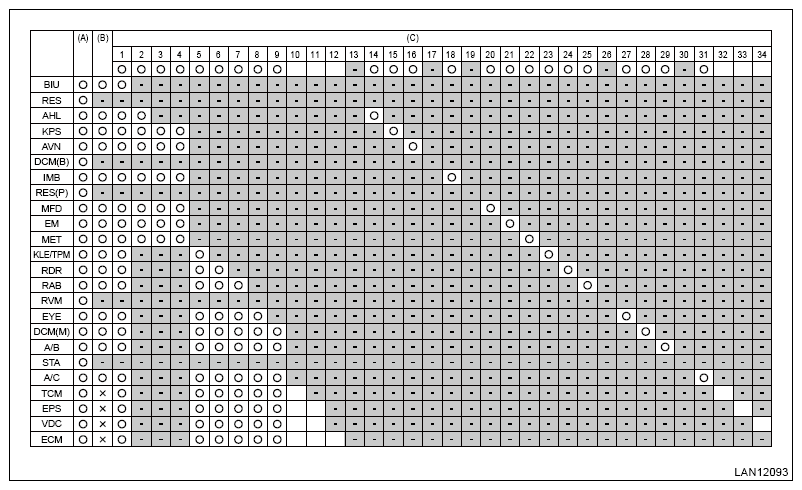

When No. 10 is open

Courtesy of SUBARU OF AMERICA, INC.

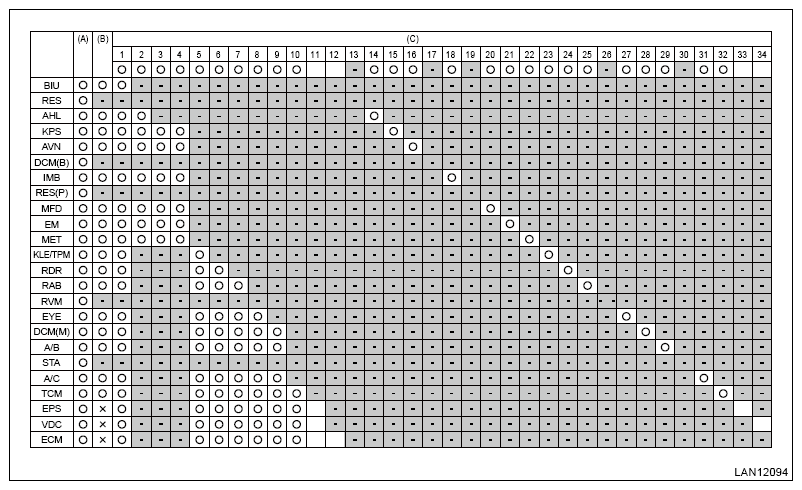

When No. 11 is open

Courtesy of SUBARU OF AMERICA, INC.

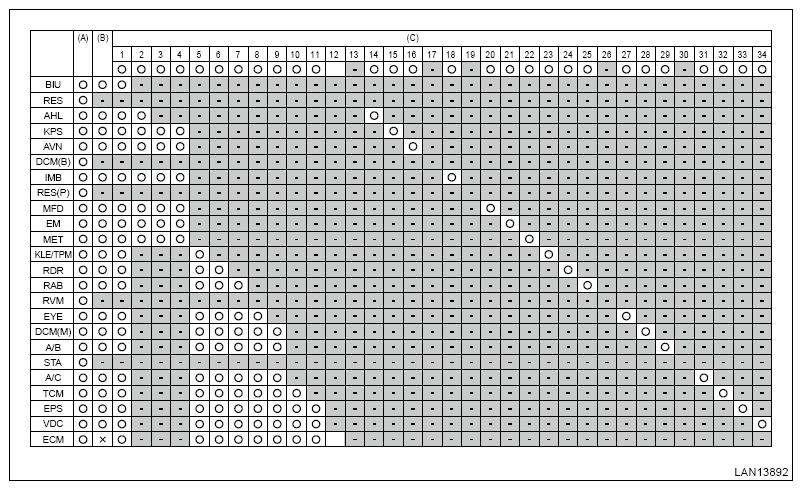

When No. 12 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 13 is open
NOTE: This is the same as for No. 17, 19, 26 and 30, but if the remote engine starter does not operate even though no DTC has been detected, check the lines of the remote engine starter.

Courtesy of SUBARU OF AMERICA, INC.
When No. 14 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 15 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 16 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 17 is open
NOTE: Diagnosis is possible by referring to the example of each unit not received detection, which is the same as No. 13, 19, 26, 30.

Courtesy of SUBARU OF AMERICA, INC.
When No. 18 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 19 is open
NOTE: This is the same as for No. 13, 17, 26 and 30, but if the remote engine starter does not operate even though no DTC has been detected, check the lines of the remote engine starter.

Courtesy of SUBARU OF AMERICA, INC.
When No. 20 is open

Courtesy of SUBARU OF AMERICA, INC.

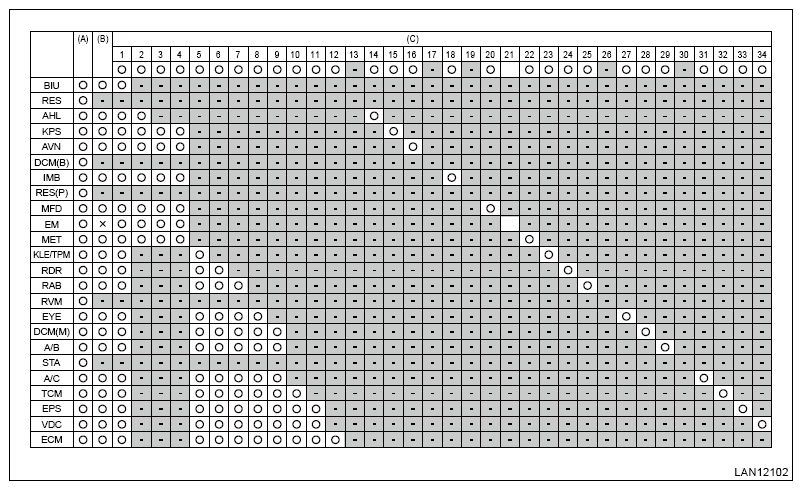

When No. 21 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 22 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 23 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 24 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 25 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 26 is open
NOTE: This is the same as for No. 13, 17, 19 and 30, but if the rear view mirror does not operate even though no DTC has been detected, check the lines of the rear view mirror.

Courtesy of SUBARU OF AMERICA, INC.
When No. 27 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 28 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 29 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 30 is open
NOTE: Diagnosis is possible by referring to the example of each unit not received detection, which is the same as No. 13, 17, 19, 26.

Courtesy of SUBARU OF AMERICA, INC.
When No. 31 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 32 is open

Courtesy of SUBARU OF AMERICA, INC.

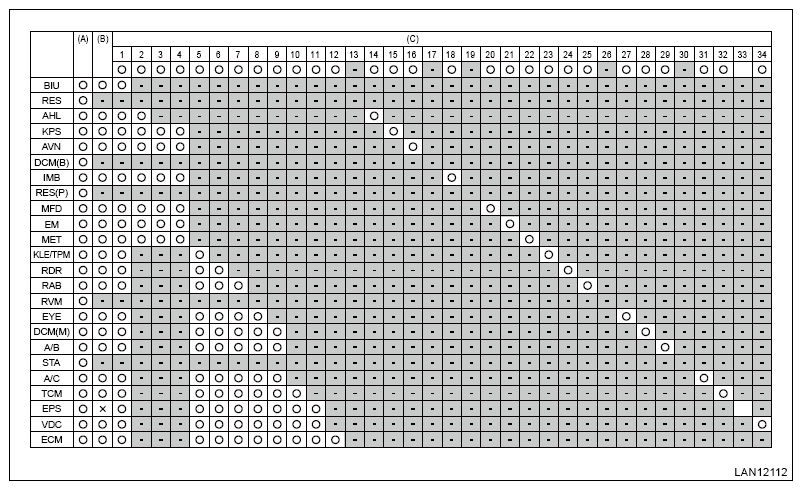

When No. 33 is open

Courtesy of SUBARU OF AMERICA, INC.
When No. 34 is open

Courtesy of SUBARU OF AMERICA, INC.
