Turn Signal Light Bulb

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

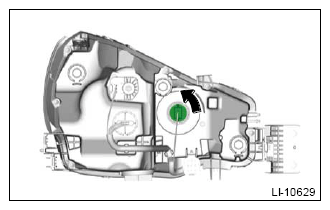

  1. Rotate in the direction of arrow shown in the figure to remove the bulb socket.
  2. Remove the turn signal light bulb.
    G13200806Courtesy of SUBARU OF AMERICA, INC.
