Piston And Connecting Rod
WARNING: This page is about a different variant/trim than selected.

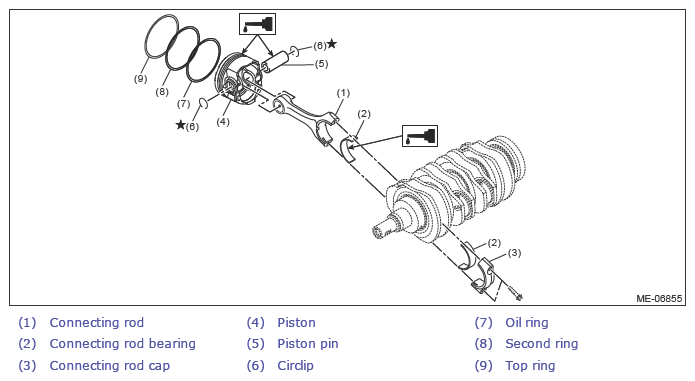

- Install the connecting rod bearing to the connecting rod and connecting rod cap.
- Install the circlip on one end of the piston using a flat tip screwdriver.NOTE:
- Be careful not damage the piston, by wrapping the tip of flat tip screwdriver with tape.
- Make sure the circlip is firmly inserted into the circlip groove.
- After installing the circlip, rotate the circlip so that its end part (a) and the cut-out portion of circlip groove (b) do not match.

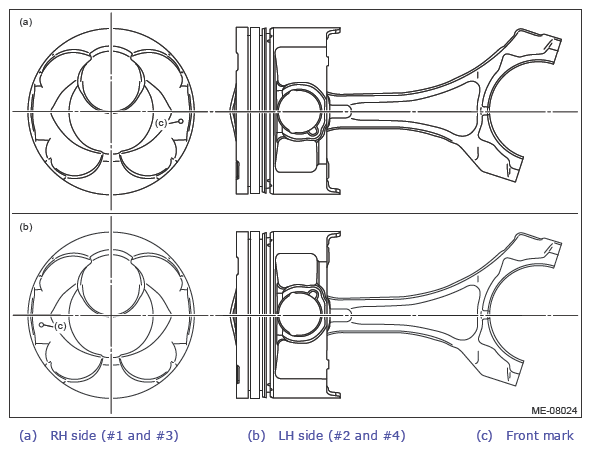

- Set the piston to the connecting rod.NOTE: Align the front mark of piston and the connecting rod direction correctly as shown in the figure.
- Apply engine oil to the piston pin, and attach the piston pin.
- Install the circlip on the piston using a flat tip screwdriver.NOTE:
- Be careful not damage the piston and piston pin, by wrapping the tip of flat tip screwdriver with tape.
- Make sure the circlip is firmly inserted into the circlip groove.
- After installing the circlip, rotate the circlip so that its end part (a) and the cut-out portion of circlip groove (b) do not match.

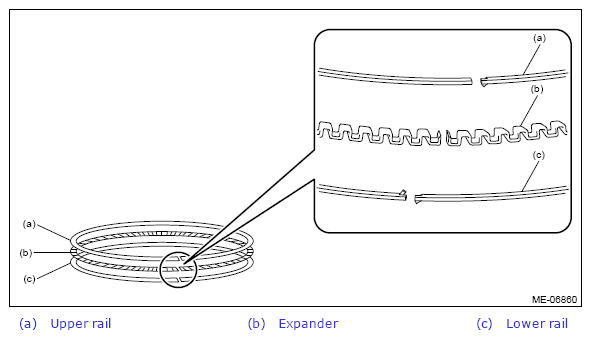

- Install the oil rings to the piston in the order of expander, lower rail and upper rail by hand.NOTE: Oil ring consists of the upper rail, expander and lower rail.
- Set the ring gap of the expander to the position (A).
- Set the lower rail spin stopper (D) to the oil groove (C) located above the cut-out portion (B) of the piston skirt coating, and hook the lower rail spin stopper (F) to the expander (E).
- Set the upper rail gap to the position (G), and hook the upper rail spin stopper (H) to the expander (E).
- Set the ring gap of the expander to the position (A).
- Install the compression rings to the piston in the order of second ring and top ring, using piston ring expander.
- Set the ring gap of the second ring to the position (A) in the figure.NOTE: Install the second ring so that the ring mark (2N) faces the piston crown.
- Set the ring gap of top ring at (B) in the figure on the 180° opposite direction of (A).
NOTE: Install the top ring so that the ring mark (TN) faces the piston crown. - Set the ring gap of the second ring to the position (A) in the figure.
- Check that the piston ring is installed correctly.
